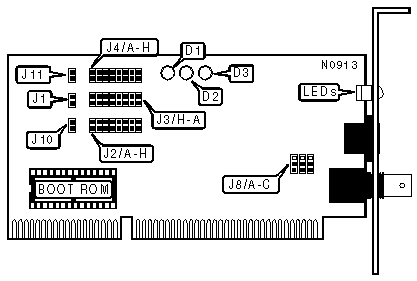

COMPU-SHACK PRODUCTION, GMBH
CS-ETHERNET-KARTE COMBO PREMIUM
|
NIC Type: |
Ethernet |
|
Transfer Rate: |
10Mbps |
|
Data Bus: |
16-bit ISA |
|
Topology: |
Linear Bus Star |
|
Wiring Type |
RG58A/U 50ohm coaxial Shielded/unshielded twisted pair |
|
Boot ROM |
Available |
|
HARDWARE/SOFTWARE CONFIGURABLE SELECT | ||
|
Setting |
J1 | |
| » |
Card is software-configured |
Open |
|
Card is hardware (jumper) configured |
Closed | |
|
BOOT ROM ADDRESS - J2 | ||||||
|
Address |
Jumper A |
Jumper B |
Jumper C |
Jumper D |
Jumper F | |
| » |
Disabled |
Open |
Open |
Open |
Open |
Closed |
|
C0000h |
Open |
Closed |
Open |
Open |
Open | |
|
C4000h |
Closed |
Closed |
Open |
Open |
Open | |
|
C8000h |
Open |
Open |
Closed |
Open |
Open | |
|
CC000h |
Closed |
Open |
Closed |
Open |
Open | |
|
D0000h |
Open |
Closed |
Closed |
Open |
Open | |
|
D4000h |
Closed |
Closed |
Closed |
Open |
Open | |
|
D8000h |
Open |
Open |
Open |
Closed |
Open | |
|
DC000h |
Closed |
Open |
Open |
Closed |
Open | |
|
I/O ADDRESS - J3 | ||||
|
Address |
Jumper A |
Jumper B |
Jumper C | |
| » |
300h |
Open |
Open |
Open |
|
240h |
Open |
Closed |
Open | |
|
280h |
Closed |
Closed |
Open | |
|
2C0h |
Open |
Open |
Closed | |
|
320h |
Closed |
Open |
Closed | |
|
340h |
Open |
Closed |
Closed | |
|
360h |
Closed |
Closed |
Closed | |
|
INTERRUPT SELECT - J3 | ||||
|
IRQ |
Jumper D |
Jumper E |
Jumper F | |
| » |
IRQ3 |
Open |
Open |
Open |
|
IRQ4 |
Closed |
Open |
Open | |
|
IRQ5 |
Open |
Closed |
Open | |
|
IRQ7 |
Closed |
Closed |
Open | |
|
IRQ9 |
Open |
Open |
Closed | |
|
IRQ11 |
Open |
Closed |
Closed | |
|
IRQ12 |
Closed |
Closed |
Closed | |
|
FAST-READ MODE | ||
|
Setting |
J3/jumper G | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
NE2000/WD MODE SELECT | ||
|
Setting |
J3/jumper H | |
| » |
NE2000 mode |
Open |
|
WD mode |
Closed | |
|
WIRING TYPE SELECT | ||
|
Setting |
J4/jumper A | |
| » |
BNC (coaxial) |
Closed |
|
Shielded/unshielded twisted-pair |
Open | |
|
TWISTED PAIR STATUS LED (D4) | ||
|
Setting |
J4/jumper C | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
IOCS16 SIGNAL | ||
|
Setting |
J4/jumper D | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
IOCHRDY SIGNAL | ||
|
Setting |
J4/jumper E | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
BNC-TYPE - J8 | ||||
|
Setting |
Jumper A |
Jumper B |
Jumper C | |
| » |
RG58A/U 50ohm coaxial |
All pins open |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
RG62A/U 93ohm coaxial |
All pins open |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
BOOT ROM TYPE | ||
|
Setting |
J10 | |
| » |
2764 chip |
Pins 2 & 3 closed |
|
27256 chip |
Pins 1 & 2 closed | |
|
16/64KB RAM VERSION | |
|
Setting |
J11 |
|
16KB |
Pins 1 & 2 closed |
|
64KB |
Pins 2 & 3 closed |
|
FACTORY CONFIGURED SETTINGS | |
|
Jumper |
Setting |
|
J2/jumper E |
Open |
|
J2/jumper G |
Open |
|
J2/jumper H |
Open |
|
J4/jumper B |
Open |
|
J4/jumper F |
Open |
|
J4/jumper G |
Open |
|
J4/jumper H |
Open |
|
DIAGNOSTIC LEDS | |||
|
LED |
Color |
Status |
Condition |
|
D1 |
Red |
On |
Data is being transmitted |
|
D2 |
Green |
On |
Data is being received |
|
D3 |
Red |
On |
Collision detected on network |
|
D4 |
Green |
On |
Twisted pair network connection is good |
|
D5 |
Red |
On |
Twisted pair network connection is broken |
