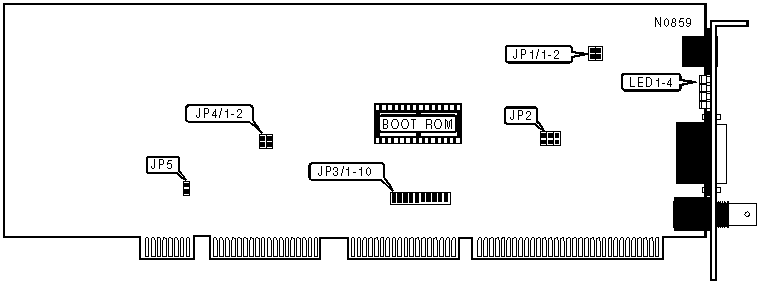

D-LINK
DE-500
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
VESA local bus |
|
Topology |
Linear Bus Star |
|
Wiring Type |
AUI Transceiver via DB-15 port RG-58A/U 50ohm coaxial Unshielded twisted pair |
|
Boot ROM |
Available |
|
CABLE TYPE SELECTION |
|||
|
Cable Type |
JP1/1 |
JP1/2 |
|
|
» |
Unshielded twisted pair |
Closed |
Open |
|
AUI Transceiver via DB-15 port |
Open |
Closed |
|
|
RG-58A/U 50ohm coaxial |
Closed |
Closed |
|
|
BASE I/O ADDRESS SELECTION |
|||
|
Address |
JP4/1 |
JP4/2 |
|
|
» |
300-31F |
Closed |
Closed |
|
320-33F |
Closed |
Open |
|
|
340-35F |
Open |
Closed |
|
|
360-37F |
Open |
Open |
|
|
INTERRUPT SELECTION |
|||||||||||
|
IRQ |
JP3/1 |
JP3/2 |
JP3/3 |
JP3/4 |
JP3/5 |
JP3/6 |
JP3/7 |
JP3/8 |
JP3/9 |
JP3/10 |
|
|
» |
5 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
3 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
4 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
6 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
7 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
|
9 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
|
11 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
|
12 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
|
14 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
|
15 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
|
BUS SPEED |
||
|
Size |
JP5 |
|
|
» |
33Mhz |
Closed |
|
50Mhz |
Open |
|
|
BOOT ROM CONFIGURATION |
||
|
Setting |
JP2/1 |
|
|
» |
Disable |
Open |
|
Enable |
Closed |
|
|
ROM ADDRESS |
|||
|
Address |
JP2/2 |
JP2/3 |
|
|
» |
D000:0-D000:1FFF |
Closed |
Open |
|
C000:0-C000:1FFF |
Open |
Open |
|
|
C800:0-C800:1FFF |
Open |
Closed |
|
|
D800:0-D800:1FFF |
Closed |
Closed |
|
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Power on |
|
LED1 |
Green |
Blinking |
Data is being transmitted |
|
LED1 |
Green |
Off |
Power off |
|
LED2 |
Green |
On |
Network connection is good (UTP only) |
|
LED2 |
Green |
Blinking |
Data is being received |
|
LED2 |
Green |
Off |
Network connection is broken (UTP only) |
|
LED3 |
Yellow |
On |
Network connection is broken (BNC only) |
|
LED3 |
Yellow |
Blinking |
Collision detected |
|
LED3 |
Yellow |
Off |
Normal operation |
|
LED4 |
Yellow |
On |
Card is transmitting for an extended time (jabber) |
|
LED4 |
Yellow |
Off |
Normal operation |
