CELAN TECHNOLOGY, INC.

EMACIIC

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

NuBus

Topology

Linear Bus/Star

Wiring Type

Shielded/Unshielded twisted pair

AUI transceiver via DB-15 port

RG-58A/U 50ohm coaxial

Boot ROM

Not available

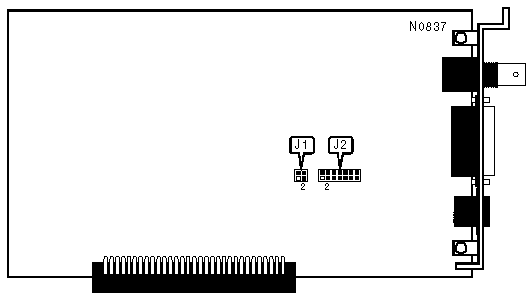

CABLE TYPE

Type

J1

J2

Unshielded twisted pair

Pins 1 & 2 closed

Pins 1 & 2, 3 & 4, 5 & 6 closed

RG58A/U 50ohm coaxial

Pins 3 & 4 closed

Pins 7 & 8, 9 & 10, 11 & 12 closed

AUI transceiver via DB-15 port

Pins 3 & 4 closed

Pins 1 & 2, 3 & 4, 5 & 6 closed
