DIAMOND FLOWER, INC.

NET-700EC/NET-700ET/NET-700ECT

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Linear Bus, Star

Wiring Type

Unshielded twisted pair

RG58A/U 50ohm coaxial

AUI transceiver via DB-15 port

Boot ROM

Available

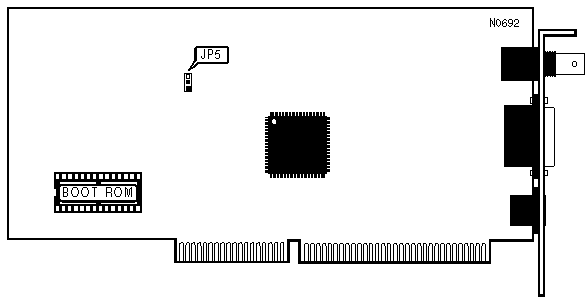

BIOS RE-CONFIGURATION SELECT

Setting

JP5

»

Normal operation

Pins 1 & 2 closed



Reconfigure BIOS

Pins 2 & 3 closed

MISCELLANEOUS TECHNICAL NOTE

Note: The NET-700EC model comes equipped with BNC and AUI connectors. The NET-700ET comes with AUI and RJ-45 connectors, and the NET-700ECT comes with AUI, BNC, and RJ-45 connectors.
