DIGITAL EQUIPMENT CORPORATION

ETHERWORKS MC

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit MCA

Topology

Linear bus

Wiring Type

RG58A/U 50ohm coaxial

AUI transceiver via DB15

Boot ROM

Available

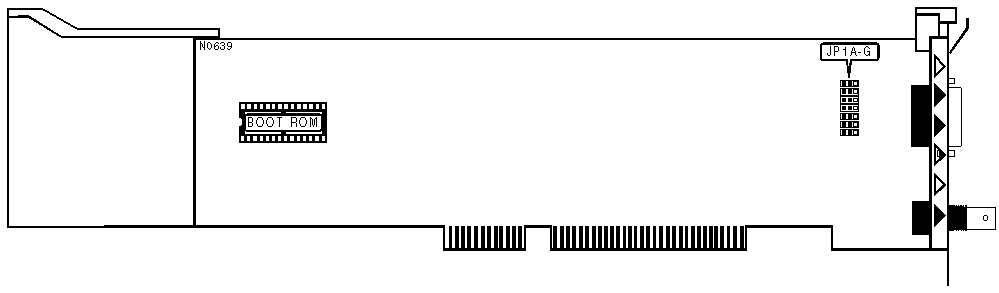

CABLE TYPE

Type

JP1A-G

»

RG58A/U 50ohm coaxial

Pins 2 & 3 closed



AUI transceiver via DB-15 port

Pins 1 & 2 closed

MISCELLANEOUS NOTES

Software included with the card must be used in order to fully configure it.
