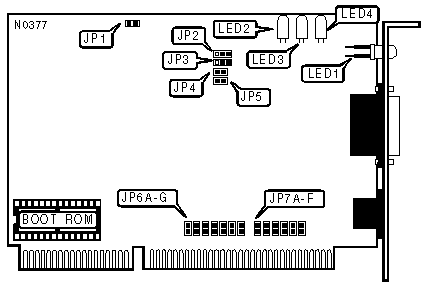

DANPEX CORPORATION

EN-2200T

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Star

Wiring Type

Shielded/Unshielded twisted pair

AUI transceiver via DB-15 port

Boot ROM

Available

ACTIVITY LED

Setting

JP1

Enabled

Closed

Disabled

Open

Note:If the network hub has an activity LED for each line, setting this option to enabled will allow the hub LED to

LINK INTEGRITY TEST

Setting

JP2

»

Enabled

Pins 1 & 2 closed



Disabled

Pins 2 & 3 closed

Note:The link integrity test is valid only when the cable type is shielded/unshielded twisted pair.

CABLE TYPE

Type

JP3

»

Shielded/Unshielded twisted pair

Pins 1 & 2 closed



AUI transceiver via DB-15 port

Pins 2 & 3 closed

WAIT STATE

Setting

JP4

JP5

»

0 wait states

Open

Open



1 wait state

Open

Closed



2 wait states

Closed

Open

INTERRUPT REQUEST

IRQ

JP6A

JP6B

JP6C

JP6D

JP6E

JP6F

JP6G



2/9

Closed

Open

Open

Open

Open

Open

Open

»

3

Open

Closed

Open

Open

Open

Open

Open



4

Open

Open

Closed

Open

Open

Open

Open



5

Open

Open

Open

Closed

Open

Open

Open



10

Open

Open

Open

Open

Closed

Open

Open



12

Open

Open

Open

Open

Open

Closed

Open



15

Open

Open

Open

Open

Open

Open

Closed

BOOT ROM

Setting

JP7A

»

Disabled

Open



Enabled

Closed

BOOT ROM ADDRESS

Boot ROM Address

JP7B

JP7C

JP7D

C8000h

Closed

Open

Closed

CC000h

Open

Open

Closed

D0000h

Closed

Closed

Open

D4000h

Open

Closed

Open

I/O BASE ADDRESS

I/O Address

JP7E

JP7F

»

300h

Closed

Closed



320h

Open

Closed



340h

Closed

Open



360h

Open

Open

DIAGNOSTIC LED(S)

LED

Status

Condition

LED1

Blinking

Data is being transmitted

LED1

Off

Data is not being transmitted

LED2

On

Twisted pair connection is good

LED2

Off

Twisted pair connection is broken

LED3

Blinking

Data is being received

LED3

Off

Data is not being received

LED4

On

Collision detected on network

LED4

Off

No collisions detected on network

Note:LED2 will only funtion when the cable type is twisted pair, otherwise LED2 will remain off.
