DANPEX CORPORATION

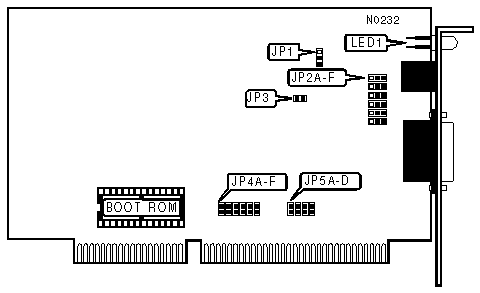

Aquila AQ-2000TP
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair AUI Transceiver via DB-15 port |
|
Boot ROM |
Available |
|
LINK INTEGRITY TEST | ||
|
Setting |
JP1 | |
| » |
Enabled |
Pins 2 & 3 Closed |
|
Disabled |
Pins 1 & 2 Closed | |
|
Note:The link integrity test is only valid when the cable type is unshielded twisted pair. | ||
|
CABLE TYPE | |||
|
Type |
JP2A - JP2F |
JP3 | |
| » |
RG-58A/U 50ohm coaxial |
Pins 2 & 3 Closed |
Open |
|
AUI transceiver via DB-15 port |
Pins 1 & 2 Closed |
Closed | |
|
BOOT ROM | ||
|
Setting |
JP4A | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
BOOT ROM ADDRESS | |||
|
Address |
JP4C |
JP4D | |
| » |
C8000h |
Open |
Open |
|
CC000h |
Closed |
Open | |
|
D0000h |
Open |
Closed | |
|
D4000h |
Closed |
Closed | |
|
I/O BASE ADDRESS | |||
|
Address |
JP4E |
JP4F | |
| » |
300h |
Open |
Open |
|
320h |
Closed |
Open | |
|
340h |
Open |
Closed | |
|
360h |
Closed |
Closed | |
|
INTERRUPT REQUEST | |||||
|
IRQ |
JP5A |
JP5B |
JP5C |
JP5D | |
|
2/9 |
Closed |
Open |
Open |
Open | |
| » |
3 |
Open |
Closed |
Open |
Open |
|
4 |
Open |
Open |
Closed |
Open | |
|
5 |
Open |
Open |
Open |
Closed | |
|
FACTORY CONFIGURED SETTINGS | |
|
Jumper |
Setting |
|
JP4B |
Open |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Red |
On |
Collision detected on network |
|
LED1 |
Red |
Off |
Normal operation |
