CABLETRON SYSTEMS, INC.
E3010/-X (Twisted pair)
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16/32-bit MCA |
|
Topology |
Star Linear Bus |
|
Wiring Type |
Unshielded twisted pair AUI transceiver via DB-15 port |
|
Boot ROM |
Not Available |
|
CABLE TYPE | ||
|
Type |
Switch PSS | |
| » |
Unshielded twisted pair |
On |
|
AUI transceiver via DB-15 port |
Off | |
|

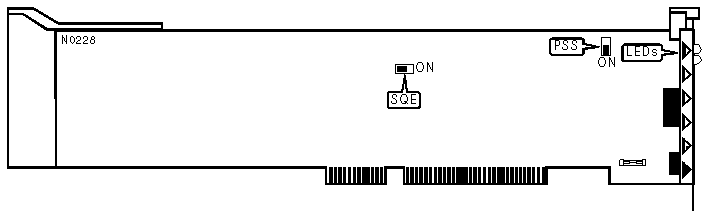

SIGNAL QUALITY ERROR (SQE) TEST | ||
|
Setting |
Switch SQE | |
| » |
Disabled |
Off |
|
Enabled |
On | |
|
Note:Signal Quality Error (SQE) is a test of the collision circuitry and path. | ||
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
1 |
Green |
On/Blinking |
Data is being transmitted |
|
1 |
Green |
Off |
Data is not being transmitted |
|
2 |
Red |
On/Blinking |
Collision detected on network |
|
2 |
Red |
Off |
Network is free of collisions |
|
3 |
Yellow |
On/Blinking |
Data is being received |
|
3 |
Yellow |
Off |
Data is not being received |
|
4 |
Green |
On |
Network connection is good |
|
4 |
Green |
Off |
Network connection is broken |
