NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus
Wiring Type	RG-58 A/U 50ohm coaxial AUI Transceiver via DB-15 port
Boot ROM	Available

CABLE TYPE
Type		JP2A - JP2F	JP3
»	RG-58A/U 50ohm coaxial	Pins 2 & 3 Closed	Open
	AUI transceiver via DB-15 port	Pins 1 & 2 Closed	Closed

BOOT ROM
Setting		JP4A
»	Disabled	Open
	Enabled	Closed

BOOT ROM ADDRESS
Address		JP4C	JP4D
»	C8000h	Open	Open
	CC000h	Closed	Open
	D0000h	Open	Closed
	D4000h	Closed	Closed

I/O BASE ADDRESS
Address		JP4E	JP4F
»	300h	Open	Open
	320h	Closed	Open
	340h	Open	Closed
	360h	Closed	Closed

INTERRUPT REQUEST
IRQ		JP5A	JP5B	JP5C	JP5D
	2/9	Closed	Open	Open	Open
»	3	Open	Closed	Open	Open
	4	Open	Open	Closed	Open
	5	Open	Open	Open	Closed

FACTORY CONFIGURED SETTINGS
Jumper	Setting
JP1	Open
JP4B	Open

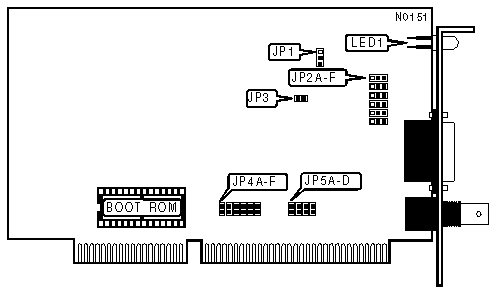

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Red	On	Collision detected on network
LED1	Red	Off	Normal operation
