BLACK BOX CORPORATION

LE1356C

Card Type

Ethernet

Data Bus

16-bit ISA

Maximum network Rate

10Mbps

Topology

Star

Wiring Type

Unshielded twisted pair

Boot ROM

Available

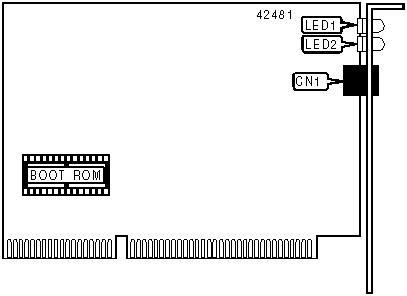

CONNECTIONS

Function

Label

Unshielded twisted pair port

CN1

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Network connection is good

LED1

Green

Off

Network connection is broken

LED2

Unidentified

Blinking

Data is being transmitted/received

LED2

Unidentified

Off

Data is not being transmitted/received
