Device Type	Apple Ethernet Transceiver
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10Mbps
Topology	Star
Wiring Type	Unshielded twisted pair
Data Bus	External

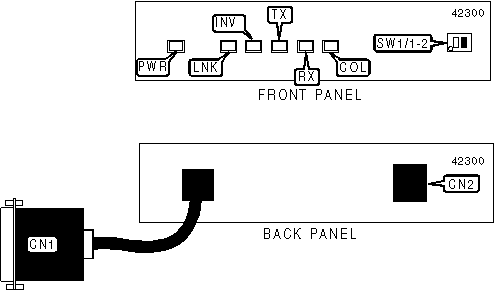

CONNECTIONS
Function	Label	Function	Label
AUI transceiver via DB-15	CN1	RJ-45 UTP connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	SQE test function enabled	SW1/1	On
	SQE test function disabled	SW1/1	Off
»	Factory configured - do not alter	SW1/2	Unidentified

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
PWR	Green	On	Power is on
PWR	Green	Off	Power is off
LNK	Green	Blinking	Network connection is good
LNK	Green	Off	Network connection is broken
INV	Yellow	On	UTP signal inversion has been detected and corrected
INV	Yellow	Off	UTP signal inversion has not been detected
TX	Green	On	Data is being transmitted
TX	Green	Off	Data is not being transmitted
RX	Green	On	Data is being received
RX	Green	Off	Data is not being received
COL	Yellow	On	Collision detected on network
COL	Yellow	Off	No collision detected on network
