ASANTE TECHNOLOGIES, INC.

MACCON-I NB-TN

Card Type

Ethernet

Chip Set

Unidentified

Data Bus

NuBus

Maximum Network Rate

10Mbps

Topology

Linear Bus

Wiring Type

AUI transceiver via DB-15 port

RG-58A/U 50ohm coaxial

Boot ROM

Not available

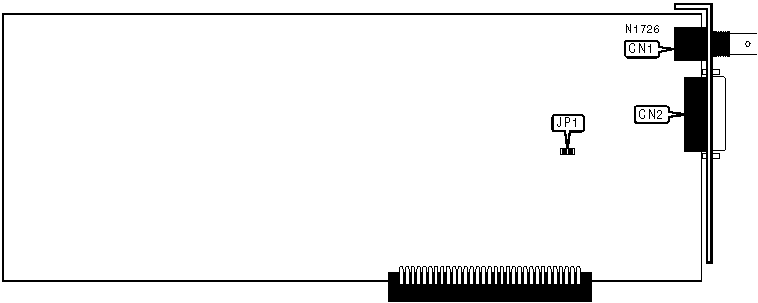

CONNECTIONS

Function

Label

Function

Label

RG-58A/U 50ohm coaxial

CN1

AUI transceiver via DB-15 port

CN2

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Link integrity function enabled

JP1

Open



Link integrity function disabled

JP1

Closed

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Yellow

Blinking

Traffic detected on network

LED1

Yellow

Off

Traffic not detected on network

LED2

Green

On

Network connection is good

LED2

Green

Off

Network connection is broken

Note: Exact location of LEDs is unidentified.
