ASANTE TECHNOLOGY, INC.

ETHERPAC 2000+3

Card Type

Ethernet

Data Bus

8/16-bit ISA

Maximum Network Rate

10Mbps

Topology

Linear Bus/Star

Wiring Type

Unshielded twisted pair

AUI transceiver via DB-15 port

RG-58A/U 50ohm coaxial

Boot ROM

Available

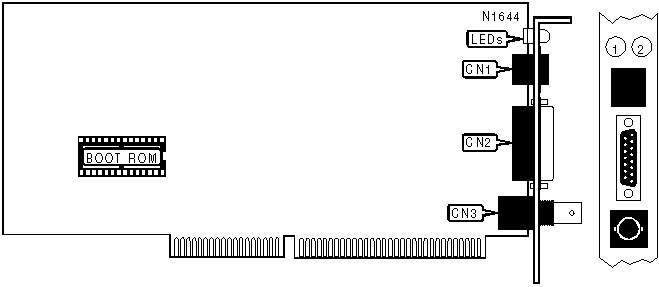

CONNECTIONS

Function

Label

Function

Label

Unshielded twisted pair

CN1

RG-58A/U 50ohm coaxial

CN3

AUI transceiver via DB-15 port

CN2



DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Red

On

Card is transmitting or receiving

LED1

Red

Off

Card is not transmitting or receiving

LED2

Green

On

Network connection is good

LED2

Green

Off

Network connection is broken
