NIC Type	Ethernet
Network Transfer Rate	10/100Mbps
Data Bus	32-bit EISA
Topology	Star
Wiring Type	Unshielded twisted pair
Boot ROM	Available

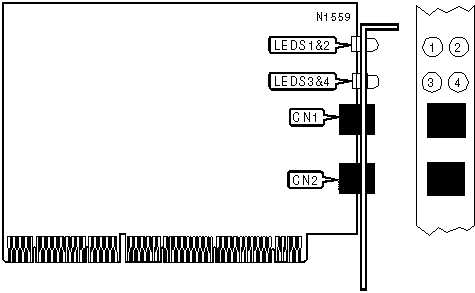

CONNECTIONS
Function	Label	Function	Label
Unshielded twisted pair port (100VG-AnyLAN)	CN1	Unshielded twisted pair port (10Base-T)	CN2

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	100VG-AnyLAN connected
LED1	Off	100VG-AnyLAN not connected
LED2	On	10Base-T connected
LED2	Off	10Base-T not connected
LED3	On	Network connection is good
LED3	Off	Network connection is broken
LED4	On	Data is being transmitted/received
LED4	Off	Data is not being transmitted/received
