BOCA RESEARCH, INC.

BOCALANCARD (BEN120)

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Linear Bus/Star

Wiring Type

Unshielded twisted pair

RG-58A/U 50ohm coaxial

Boot ROM

Available

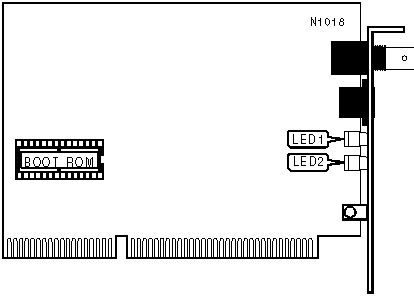

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Network connection is good

LED1

Green

Off

Network connection is broken

LED2

Red

On

Normal polarity

LED2

Red

Off

Reversed polarity

Note: LED2 is programmable to show transmit, receive, polarity, jabber and collision. Polarity is default
