AT-LAN-TEC, INC.
ALL-IN-ONE ETHERNET NE2000
|

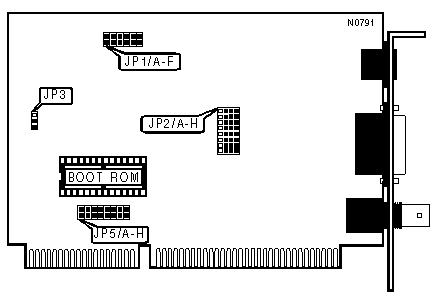

NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear bus Star |
|
Wiring Type |
RG58A/U 50ohm coaxial AUI transceiver via DB-15 port Unshielded twisted pair |
|
Boot ROM |
Available |
|
REMOTE BOOT SELECT | ||
|
Setting |
JP1/A | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
ROM ADDRESS SELECT | |||
|
Address |
JP1/B |
JP1/C |
JP1/D |
|
C800h |
Open |
Closed |
Open |
|
C000h |
Open |
Open |
Open |
|
C400h |
Open |
Open |
Closed |
|
CC00h |
Open |
Closed |
Closed |
|
D000h |
Closed |
Open |
Open |
|
D400h |
Closed |
Open |
Closed |
|
D800h |
Closed |
Closed |
Open |
|
DC00h |
Closed |
Closed |
Closed |
|
I/O ADDRESS SELECT | ||
|
Address |
JP1/E |
JP1/F |
|
300h |
Open |
Open |
|
320h |
Open |
Closed |
|
340h |
Closed |
Open |
|
360h |
Closed |
Closed |
|
CABLE TYPE SELECT | ||||||||
|
Cable Type |
JP2/A |
JP2/B |
JP2/C |
JP2/D |
JP2/E |
JP2/F |
JP2/G |
JP2/H |
|
Twisted Pair |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
|
AUI |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
|
BNC |
3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
3 & 4 |
|
Note: Pins designated are in the closed position. | ||||||||
|
AT BUS SELECT | |
|
Setting |
JP3 |
|
AT Bus Compatibility |
Pins 1 & 2 closed |
|
Not AT Bus Compatibility |
Pins 2 & 3 closed |
|
INTERRUPT SELECT | ||||||||
|
IRQ |
JP5/A |
JP5/B |
JP5/C |
JP5/D |
JP5/E |
JP5/F |
JP5/G |
JP5/H |
|
IRQ2 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ3 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ4 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
IRQ5 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
IRQ10 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
IRQ15 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
