AST RESEARCH, INC.

AST ETHERNET (202171-001)

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Linear bus

Wiring Type

RG-58A/U 50ohm coaxial

AUI transceiver via DB-15 port

Boot ROM

Not available

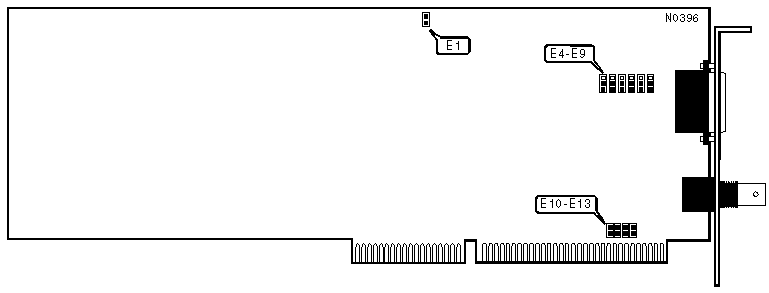

SLEEP MODE

Setting

E1

»

Disabled

Closed



Enabled

Open

Note: When sleep mode is enabled the card is disabled. The card cannot be accessed by the computer or the network. This option is provided to simplify trouble shooting system conflicts.

CABLE TYPE

Type

E4 - E9

»

RG-58A/U 50ohm coaxial

Pins 2 & 3 closed



AUI transceiver via DB-15 port

Pins 1 & 2 closed

CARD ID

Setting

E10

E11

E12

E13

»

A

Closed

Open

Open

Open



B

Open

Closed

Open

Open



C

Open

Open

Closed

Open



D

Open

Open

Open

Closed

Note: Up to four cards can be installed at once into the same system. If more than one card is installed in the
system, each must have a distinct ID.

MISCELLANEOUS NOTES

To completely configure this card, the software that comes with it must be used..
