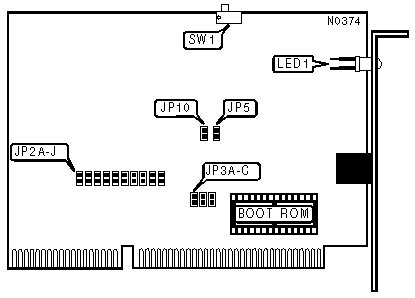

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Star
Wiring Type	Unshielded twisted pair
Boot ROM	Available

INTERRUPT REQUEST
IRQ		JP2A	JP2B	JP2C	JP2D	JP2E	JP2F	JP2G
	2/9	Open	Open	Open	Open	Open	Closed	Open
»	3	Open	Open	Open	Open	Closed	Open	Open
	5	Open	Open	Open	Closed	Open	Open	Open
	10	Open	Open	Open	Open	Open	Open	Closed
	11	Closed	Open	Open	Open	Open	Open	Open
	12	Open	Closed	Open	Open	Open	Open	Open
	15	Open	Open	Closed	Open	Open	Open	Open

I/O BASE ADDRESS
Address		JP2I	JP2J
	200h	Closed	Closed
	210h	Open	Closed
»	300h	Closed	Open
	310h	Open	Open

BOOT ROM ADDRESS
Address	JP3A	JP3B
C8000h	Closed	Closed
CC000h	Closed	Open
D8000h	Open	Closed
DC000h	Open	Open

BOOT ROM
Setting		JP3C
»	Disabled	Open
	Enabled	Closed
Note:Location of the boot ROM may vary on different revisions of this card.

SEGMENT LENGTH
Maximum Segment Length	JP5
100 meters	Closed
300 meters	Open
Note:Segment length is the distance from the card to the hub.

COMPATIBILITY MODE
Setting		JP10
»	Disabled	Open
	Enabled	Closed
Note:Compatibility mode is provided to compensate for timing differences between the card and host computer.

TX/RX CROSSOVER
Mode		SW1
»	Normal	On
	Crossover	Off
Note:If the diagnostic LEDs indicate that the transmit & receive wires are reversed (LED1 Off, Hub LED Off) you can correct the problem by using the crossover option.

FACTORY CONFIGURED SETTINGS
Jumper	Setting
JP2H	Open

DIAGNOSTIC LED(S)
LED1	Hub LED	Condition
On	On	Network connection is good
Off	Off	Transmit/Receive wires reversed at card
On	Off	Receive polarity reversed at hub
Off	On	Receive polarity reversed at card
Note:The Hub LED is located on the hub, not on the card.
