ASANTE TECHNOLOGIES, INC.

FRIENDLYNET II

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

32-Bit NuBus (Apple)

Topology

Linear Bus

Wiring Type

AAUI (Apple Attachment-Unit Interface)

Boot ROM

Not Available

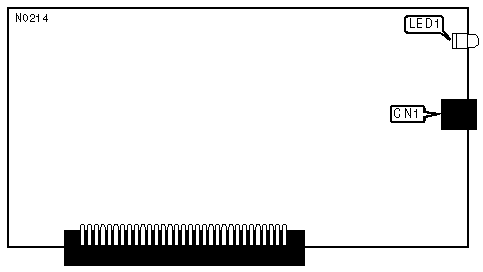

CONNECTIONS

Location

Connector

CN1

AAUI (Apple Attachment-Unit Interface)

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Data is being transmitted or receiving

LED1

Green

Off

Data is not being transmitted or receiving
