3COM CORPORATION

FAST ETHERLINK XL (3C905-TX)

NIC Type

Ethernet

Boot ROM

Available

Network Transfer Rate

10Mbps/100Mbps

Topology

Star

Wire Type

Unshielded twisted pair

Data Bus

32-bit PCI

Card Size

Full height, half length

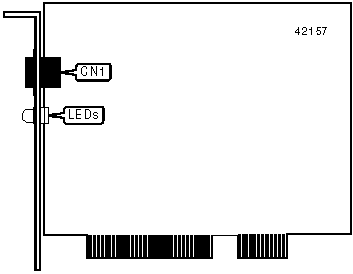

CONNECTIONS

Function

Label

RJ-45 unshielded twisted pair connector

CN1

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

10 LNK

Green

On

Network connection is good at 10Mbps

10 LNK

Green

Blinking

Line polarity is reversed

10 LNK

Green

Off

Card is not connected to network at 10Mbps

100 LNK

Green

On

Network connection is good at 100Mbps

100 LNK

Green

Off

Card is not connected to network at 100Mbps

ACT

Yellow

Blinking

Network is transmitting or receiving data

ACT

Yellow

Off

Network is not transmitting or receiving data

Note:The locations of the individual LEDs are unidentified.
