NIC Type	Ethernet
Boot ROM	Not available
Network Transfer Rate	10Mbps/100Mbps
Topology	Star
Wire Type	Unshielded twisted pair
Data Bus	32-bit PCI
Card Size	Full height, half length

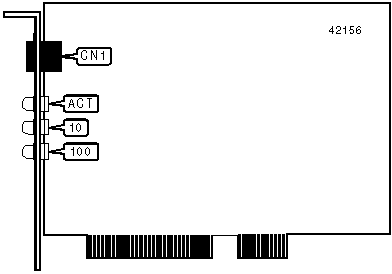

CONNECTIONS
Function	Label
UTP connector	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
ACT	Yellow	Blinking	Network is transmitting or receiving data
ACT	Yellow	Off	Network is not transmitting or receiving data
10	Green	On	Network connection is good at 10Mbps
10	Green	Blinking	Line polarity is reversed
10	Green	Off	Card is not connected to network at 10Mbps
100	Green	On	Network connection is good at 100Mbps
100	Green	Off	Card is not connected to network at 100Mbps
