ZIDA TECHNOLOGIES, INC.
5SVX (VER. 1.30)
|
Device Type |
Mainboard |
|
Processor |
CX 6X86/IBM 6X86/AM K5/AM K6/Pentium/Pentium MMX |
|
Processor Speed |
90/100/120/133/150/166/180/200/233MHz |
|
Chip Set |
Intel 430VX |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
128MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB |
|
BIOS |
Unidentified |
|
Dimensions |
230mm x 220mm |
|
I/O Options |
32-bit PCI slots (3), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connector |
|
NPU Options |
None |
|

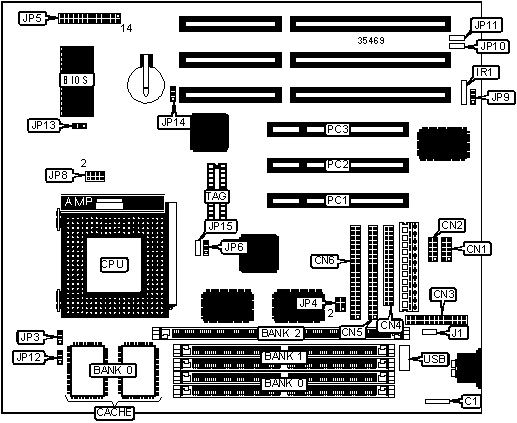

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
PS/2 mouse interface |
C1 |
Green PC connector |
JP5/pins 7 & 8 |
|
Serial port 1 |
CN1 |
Speaker |
JP5/pins 10 – 13 |
|
Serial port 2 |
CN2 |
IDE interface LED |
JP5/pins 14 & 15 |
|
Parallel port |
CN3 |
Reset switch |
JP5/pins 22 & 23 |
|
Floppy drive interface |
CN4 |
Turbo LED |
JP5/pins 25 & 26 |
|
IDE interface 1 |
CN5 |
CPU fan power |
JP12 |
|
IDE interface 2 |
CN6 |
32-bit PCI slots |
PC1 – PC3 |
|
IR connector |
IR1 |
USB connector |
USB |
|
Power LED & keylock |
JP5/pins 1 – 5 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
J1 |
Unidentified |
|
» |
CMOS memory normal operation |
JP9 |
Pins 1 & 2 closed |
|
CMOS memory clear |
JP9 |
Pins 2 & 3 closed | |
|
» |
Factory configured - do not alter |
JP10 |
Unidentified |
|
» |
Factory configured - do not alter |
JP11 |
Unidentified |
|
» |
Factory configured - do not alter |
JP15 |
Unidentified |
|
SIMM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
Note: Board accepts EDO memory. | ||
|
DIMM CONFIGURATION | |
|
Size |
Bank 2 |
|
8MB |
(1) 1M x 64 |
|
16MB |
(1) 2M x 64 |
|
32MB |
(1) 4M x 64 |
|
64MB |
(1) 8M x 64 |
|
Note: Board accepts EDO memory. | |
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
TAG |
|
256KB |
(2) 32K x 32 |
Unidentified |
|
512KB |
(2) 64K x 32 |
Unidentified |
|
CPU SPEED SELECTION (CX 6X86MX) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 |
JP4 |
JP6 |
|
133MHz |
55MHz |
2x |
1 & 2 |
1 & 2 |
3 & 5, 4 & 6 |
2 & 3 |
|
150MHz |
60MHz |
2x |
2 & 3 |
1 & 2 |
1 & 3, 4 & 6 |
2 & 3 |
|
166MHz |
66MHz |
2x |
2 & 3 |
1 & 2 |
2 & 4, 3 & 5 |
2 & 3 |
|
Note: Pins designated should be in the closed position. The location of JP2 is unidentified. | ||||||
|
CPU SPEED SELECTION (IBM 6X86MX) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 |
JP4 |
JP6 |
|
133MHz |
55MHz |
2x |
1 & 2 |
1 & 2 |
3 & 5, 4 & 6 |
2 & 3 |
|
150MHz |
60MHz |
2x |
2 & 3 |
1 & 2 |
1 & 3, 4 & 6 |
2 & 3 |
|
166MHz |
66MHz |
2x |
2 & 3 |
1 & 2 |
2 & 4, 3 & 5 |
2 & 3 |
|
Note: Pins designated should be in the closed position. The location of JP2 is unidentified. | ||||||
|
CPU SPEED SELECTION (AM K5) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 |
JP4 |
JP6 |
|
90MHz |
60MHz |
1.5x |
2 & 3 |
2 & 3 |
1 & 3, 4 & 6 |
2 & 3 |
|
100MHz |
66MHz |
1.5x |
2 & 3 |
2 & 3 |
2 & 4, 3 & 5 |
2 & 3 |
|
133MHz |
66MHz |
1.5x |
2 & 3 |
2 & 3 |
2 & 4, 3 & 5 |
2 & 3 |
|
150MHz |
60MHz |
1.75x |
2 & 3 |
1 & 2 |
1 & 3, 4 & 6 |
1 & 2 |
|
166MHz |
66MHz |
1.75x |
2 & 3 |
1 & 2 |
2 & 4, 3 & 5 |
1 & 2 |
|
Note: Pins designated should be in the closed position. The location of JP2 is unidentified. | ||||||
|
CPU SPEED SELECTION (AM K6) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 |
JP4 |
JP6 |
|
166MHz |
66MHz |
2.5x |
2 & 3 |
1 & 2 |
2 & 4, 3 & 5 |
1 & 2 |
|
200MHz |
66MHz |
3x |
2 & 3 |
2 & 3 |
2 & 4, 3 & 5 |
1 & 2 |
|
233MHz |
66MHz |
3.5x |
2 & 3 |
2 & 3 |
2 & 4, 3 & 5 |
2 & 3 |
|
Note: Pins designated should be in the closed position. The location of JP2 is unidentified. | ||||||
|
CPU SPEED SELECTION (INTEL) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 |
JP4 |
JP6 |
|
90MHz |
60MHz |
1.5x |
2 & 3 |
2 & 3 |
1 & 3, 4 & 6 |
2 & 3 |
|
100MHz |
66MHz |
1.5x |
2 & 3 |
2 & 3 |
2 & 4, 3 & 5 |
2 & 3 |
|
120MHz |
60MHz |
2x |
2 & 3 |
1 & 2 |
1 & 3, 4 & 6 |
2 & 3 |
|
133MHz |
66MHz |
2x |
2 & 3 |
1 & 2 |
2 & 4, 3 & 5 |
2 & 3 |
|
150MHz |
60MHz |
2.5x |
2 & 3 |
1 & 2 |
1 & 3, 4 & 6 |
1 & 2 |
|
166MHz |
66MHz |
2.5x |
2 & 3 |
1 & 2 |
2 & 4, 3 & 5 |
1 & 2 |
|
180MHz |
60MHz |
3x |
2 & 3 |
2 & 3 |
1 & 3, 4 & 6 |
1 & 2 |
|
200MHz |
66MHz |
3x |
2 & 3 |
2 & 3 |
2 & 4, 3 & 5 |
1 & 2 |
|
Note: Pins designated should be in the closed position. The location of JP2 is unidentified. | ||||||
|
CPU SPEED SELECTION (INTEL MMX) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP2 |
JP3 |
JP4 |
JP6 |
|
166MHz |
66MHz |
2.5x |
2 & 3 |
1 & 2 |
2 & 4, 3 & 5 |
1 & 2 |
|
200MHz |
66MHz |
3x |
2 & 3 |
2 & 3 |
2 & 4, 3 & 5 |
1 & 2 |
|
233MHz |
66MHz |
3.5x |
2 & 3 |
2 & 3 |
2 & 4, 3 & 5 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | ||||||
|
CPU VOLTAGE SELECTION (SINGLE) | |||
|
Voltage |
JP8 |
JP13 |
JP14 |
|
3.5v |
1 & 2, 3 & 4, 5 & 6, 7 & 8 |
1 & 2 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | |||
|
CPU VOLTAGE SELECTION (DUAL) | ||||
|
Voltage |
V core |
JP8 |
JP13 |
JP14 |
|
3.5v |
2.8v |
Open |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
