Processor	V20/8088
Processor Speed	4.77/8/10MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	640KB
Maximum Video Memory	None
Cache	None
BIOS	AMI/Award/Phoenix
Dimensions	254mm x 218mm
I/O Options	None
NPU Options	8087

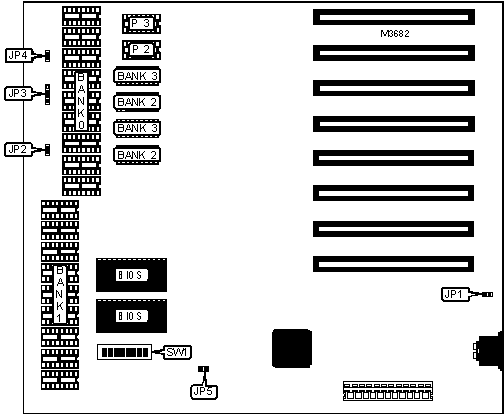

CONNECTIONS
Purpose	Location	Purpose	Location
Keylock	JP1	Power LED	JP3 pins 3 & 4
Reset switch	JP2	Turbo LED	JP4
Speaker	JP3 pins 1 & 2	Turbo switch	JP5

USER CONFIGURABLE SETTINGS
Function		Label	Position
	Turbo enabled through hardware switch (Award only)	JP5	Closed
	Turbo enabled through software (CTRL, ALT, +) (Award only)	JP5	Open
	Turbo disabled through software (CTRL, ALT, -) (Award only)	JP5	Open
	Turbo enabled/disabled through software (CTRL, ALT, +) (Phoenix/AMI only)	JP5
	NPU not installed	SW1/2	On
	NPU installed	SW1/2	Off
Note: If BIOS is Phoenix or AMI, pressing the above keyboard keys will enable or disable the turbo mode.

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	P 2	Bank 3	P 3
256KB	(9) 41256	None	None	None	None	None
512KB	(9) 41256	(9) 41256	None	None	None	None
576KB	(9) 41256	(9) 41256	(2) 4464	(1) 4164	None	None
640KB	(9) 41256	(9) 41256	(2) 4464	(1) 4164	(2) 4464	(1) 4164

DRAM SWITCH CONFIGURATION
Size	SW1/3	SW1/4
256KB	Off	Off
512KB	On	Off
640KB	Off	On

CPU SPEED SELECTION
Speed	SW1/1
4.77MHz	Off
8MHz	On
10MHz	On

FLOPPY DRIVE SELECTION
Drives installed	SW1/7	SW1/8
1	On	On
2	Off	On
3	On	Off
4	Off	Off

MONITOR SELECTION
Setting	SW1/5	SW1/6
None	On	On
Color (40 x 20)	Off	On
Color (80 x 25)	On	Off
Monochrome or both	Off	Off

MISCELLANEOUS TECHNICAL NOTE

Note: If JP5 is closed, SW1/1 must be set to the off position.
