UNIDENTIFIED

M710B

Processor

80386SX

Processor Speed

16/20/25MHz

Chip Set

Unidentified

Video Chip Set

None

Maximum Onboard Memory

8MB

Maximum Video Memory

None

Cache

None

BIOS

AMI

Dimensions

254mm x 218mm

I/O Options

None

NPU Options

80387SX

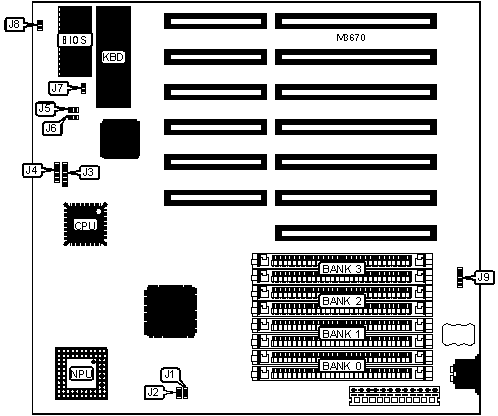

CONNECTIONS

Purpose

Location

Purpose

Location

Power LED & keylock

J3

Reset switch

J6

Speaker

J4

Turbo switch

J8

Turbo LED

J5

External battery

J9

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Monitor type select color

J7

Closed



Monitor type select monochrome

J7

Open



Turbo enabled through software (CTRL, ALT +)

J8

Open



Turbo disabled through software (CTRL, ATL -)

J8

Open



Turbo disabled

J8

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

512KB

(2) 256K x 9

None

None

None

1MB

(2) 256K x 9

(2) 256K x 9

None

None

1.5MB

(2) 256K x 9

(2) 256K x 9

(2) 256K x 9

None

2MB

(2) 256K x 9

(2) 256K x 9

(2) 256K x 9

(2) 256K x 9

2MB

(2) 1M x 9

None

None

None

3MB

(2) 256K x 9

(2) 256K x 9

(2) 1M x 9

None

4MB

(2) 1M x 9

(2) 1M x 9

None

None

5MB

(2) 256K x 9

(2) 256K x 9

(2) 1M x 9

(2) 1M x 9

6MB

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

None

8MB

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

DRAM PARITY CONFIGURATION

Setting

J1

J2

Enabled

Open

Open

Disabled

Closed

Closed
