UNIDENTIFIED

386-25 BOARD

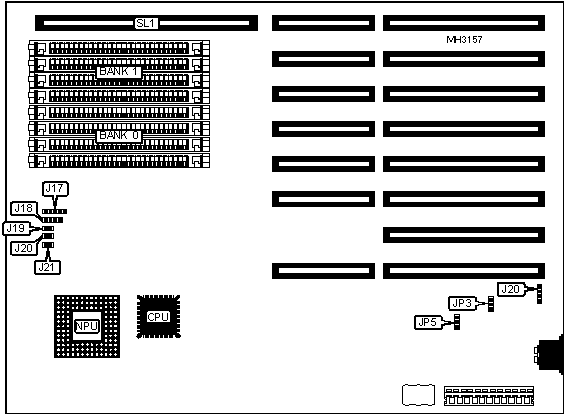

Processor

80386SX

Processor Speed

25MHz

Chip Set

OPTI

Max. Onboard DRAM

16MB (8MB on external memory card)

Cache

None

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

32-bit external memory card

NPU Options

80387SX/3167

CONNECTIONS

Purpose

Location

Purpose

Location

Power LED & keylock

J17

Turbo switch

J21

Speaker

J18

Turbo LED

J22

Reset switch

J19

32-bit external memory card

SL1

External battery

J20



USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Battery type select internal

J20

Open



Battery type select external

J20

Closed

»

Monitor type select monochrome

JP3

pins 2 & 3 closed



Monitor type select color/EGA

JP3

pins 1 & 2 closed

»

CMOS memory normal operation

JP5

pins 1 & 2 closed



CMOS memory clear

JP5

pins 2 & 3 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

1MB

(4) 256K x 9

NONE

NONE

NONE

2MB

(4) 256K x 9

(4) 256K x 9

NONE

NONE

3MB

(4) 256K x 9

(4) 256K x 9

(4) 256K x 9

NONE

4MB

(4) 256K x 9

(4) 256K x 9

(4) 256K x 9

(4) 256K x 9

4MB

(4) 1M x 9

NONE

NONE

NONE

5MB

(4) 256K x 9

(4) 1M x 9

NONE

NONE

5MB

(4) 1M x 9

(4) 256K x 9

NONE

NONE

6MB

(4) 256K x 9

(4) 256K x 9

(4) 1M x 9

NONE

6MB

(4) 256K x 9

(4) 1M x 9

(4) 256K x 9

NONE

6MB

(4) 1M x 9

(4) 256K x 9

(4) 256K x 9

NONE

7MB

(4) 256K x 9

(4) 256K x 9

(4) 1M x 9

(4) 256K x 9

7MB

(4) 256K x 9

(4) 1M x 9

(4) 256K x 9

(4) 256K x 9

7MB

(4) 1M x 9

(4) 256K x 9

(4) 256K x 9

(4) 256K x 9

8MB

(4) 1M x 9

(4) 1M x 9

NONE

NONE

9MB

(4) 256K x 9

(4) 1M x 9

(4) 1M x 9

NONE

9MB

(4) 1M x 9

(4) 1M x 9

(4) 256K x 9

NONE

9MB

(4) 1M x 9

(4) 256K x 9

(4) 1M x 9

NONE

10MB

(4) 256K x 9

(4) 256K x 9

(4) 1M x 9

(4) 1M x 9

10MB

(4) 256K x 9

(4) 1M x 9

(4) 1M x 9

(4) 256K x 9

10MB

(4) 1M x 9

(4) 1M x 9

(4) 256K x 9

(4) 256K x 9

10MB

(4) 1M x 9

(4) 256K x 9

(4) 1M x 9

(4) 256K x 9

12MB

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

NONE

13MB

(4) 256K x 9

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

13MB

(4) 1M x 9

(4) 1M x 9

(4) 256K x 9

(4) 1M x 9

13MB

(4) 1M x 9

(4) 256K x 9

(4) 1M x 9

(4) 1M x 9

16MB

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

Note: Banks 2 & 3 are located on the external memory card.

MISCELLANEOUS TECHNICAL NOTE

Note: The location of pin 1 is unidentified.
