UNIDENTIFIED

I3U4913

Processor

80386DX/CX486DLC

Processor Speed

33/40MHz

Chip Set

UMC

Max. Onboard DRAM

32MB

Cache

32/128KB

BIOS

AMI

Dimensions

220mm x 170mm

I/O Options

None

NPU Options

80387DX

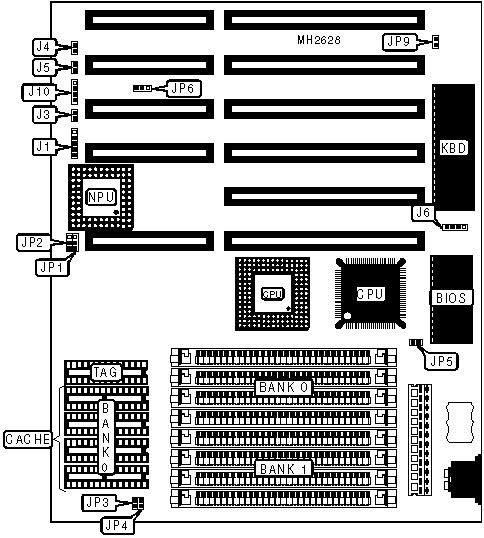

CONNECTIONS

Purpose

Location

Purpose

Location

Power LED & keylock

J1

Turbo LED

J5

Reset switch

J3

External battery

J6

Turbo switch

J4

Speaker

J10

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

PQFP CPU enabled

JP5

Open



PQFP CPU disabled

JP5

Closed

»

NPU disabled

JP6

pins 1 & 2 closed



NPU enabled

JP6

pins 2 & 3 closed

»

Monitor type select monochrome

JP9

Open



Monitor type select color

JP9

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(4) 256K x 9

NONE

2MB

(4) 256K x 9

(4) 256K x 9

4MB

(4) 1M x 9

NONE

5MB

(4) 1M x 9

(4) 256K x 9

8MB

(4) 1M x 9

(4) 1M x 9

16MB

(4) 4M x 9

NONE

17MB

(4) 4M x 9

(4) 256K x 9

20MB

(4) 4M x 9

(4) 1M x 9

32MB

(4) 4M x 9

(4) 4M x 9

CACHE CONFIGURATION

Size

Bank 0

TAG

32KB

(4) 8K x 8

(1) 8K x 8

128KB

(4) 32K x 8

(1) 8K x 8

CACHE JUMPER CONFIGURATION

Size

JP3

JP4

32KB

Open

Open

128KB

Closed

Closed

CPU SPEED CONFIGURATION

Speed

JP1

JP2

33MHz

pins 1 & 2 closed

pins 2 & 3 closed

40MHz

pins 1 & 2 closed

pins 1 & 2 closed
