UNIDENTIFIED
SUPER-16V
Processor |
8088 |
Processor Speed |
4.77/10MHz |
Chip Set |
Unidentified |
Max. Onboard DRAM |
640KB |
Cache |
None |
BIOS |
Unidentified |
Dimensions |
220mm x 218mm |
I/O Options |
Floppy drive interface, parallel port, serial port |
NPU Options |
8087 |

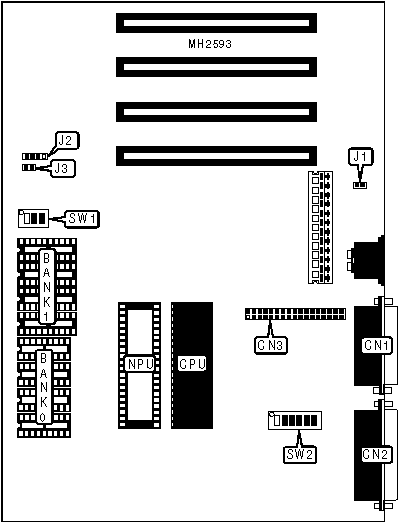

CONNECTIONS | |||
Purpose |
Location |
Purpose |
Location |
Serial port |
CN1 |
Reset switch |
J1 |
Parallel port |
CN2 |
Speaker |
J2 |
Floppy drive interface |
CN3 |
Power LED |
J3 |
USER CONFIGURABLE SETTINGS | |||
Function |
Switch |
Position | |
» |
NPU disabled |
SW1/2 |
On |
NPU enabled |
SW1/2 |
Off | |
» |
Monitor type select color |
SW1/3 |
On |
Monitor type select monochrome |
SW1/3 |
Off | |
» |
Factory configured - do not alter |
SW2/1 |
On |
» |
Factory configured - do not alter |
SW2/2 |
On |
» |
RTC select 240-25F |
SW2/3 |
On |
RTC select 340-35F |
SW2/3 |
Off | |
» |
Factory configured - do not alter |
SW2/4 |
Off |
» |
Parallel port enabled |
SW2/5 |
On |
Parallel port disabled |
SW2/5 |
Off | |
» |
Serial port enabled |
SW2/6 |
On |
Serial port disabled |
SW2/6 |
Off |
DRAM CONFIGURATION | ||
Size |
Bank 0 |
Bank 1 |
640KB |
(4) 44256 |
(4) 4464 |
CPU SPEED CONFIGURATION | |
Speed |
SW1/1 |
4.77MHz |
Off |
10MHz |
On |
