YOUNG MICRO SYSTEMS, INC.

VEGA VI-P5-IP

Processor

Pentium

Processor Speed

60/66MHz

Chip Set

Intel

Max. Onboard DRAM

192MB

Cache

256/512KB

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

32-bit PCI slots (3), PS/2 mouse connector

NPU Options

None

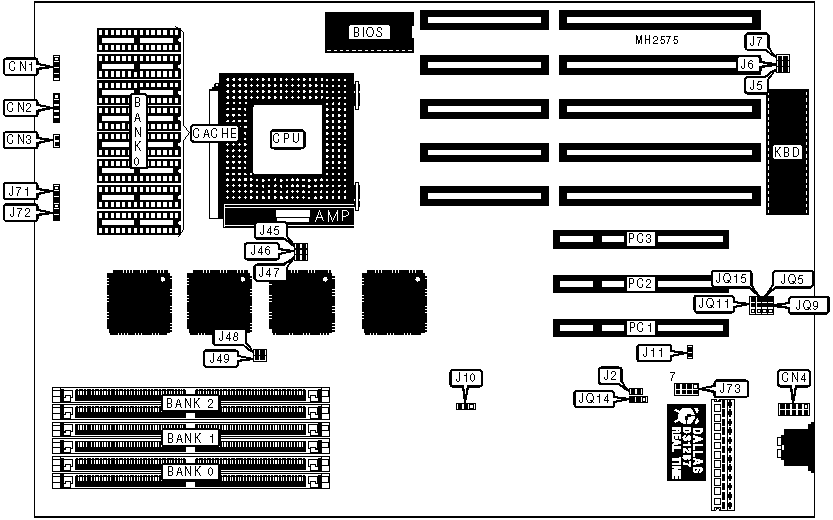

CONNECTIONS

Purpose

Location

Purpose

Location

Speaker

CN1

PS/2 mouse connector

CN4

Power LED & keylock

CN2

32-bit PCI slots

PC1 - PC3

Reset switch

CN3



USER CONFIGURABLE SETTINGS

Function

Jumper

Position

CMOS memory normal operation

J2

Open



CMOS memory clear

J2

Closed

Factory configured - do not alter

J5

Open

Factory configured - do not alter

J6

Open

Factory configured - do not alter

J7

Open

CMOS recovery select normal

J10

pins 1 & 2 closed



CMOS recovery select recover

J10

pins 2 & 3 closed

BIOS type select normal

J11

Open



BIOS type select flash

J11

Closed

Factory configured - do not alter

J45

Open

Factory configured - do not alter

J46

Open

Factory configured - do not alter

J47

Open

Factory configured - do not alter

J48

Closed

Factory configured - do not alter

J49

Closed

PCI trigger type select inverted

JQ14

pins 1 & 2 closed



PCI trigger type select standard

JQ14

pins 2 & 3 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

2MB

(2) 256K x 36

NONE

NONE

4MB

(2) 256K x 36

(2) 256K x 36

NONE

16MB

(2) 2M x 36

NONE

NONE

16MB

(2) 1M x 36

(2) 1M x 36

NONE

32MB

(2) 2M x 36

(2) 2M x 36

NONE

32MB

(2) 4M x 36

NONE

NONE

64MB

(2) 8M x 36

NONE

NONE

64MB

(2) 4M x 36

(2) 4M x 36

NONE

128MB

(2) 8M x 36

(2) 8M x 36

NONE

192MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

CACHE CONFIGURATION

Size

Bank 0

256KB

(8) 32K x 8

512KB

(8) 64K x 8

CACHE JUMPER CONFIGURATION

Size

J71

J72

256KB

pins 1 & 2 closed

pins 2 & 3 closed

512KB

pins 2 & 3 closed

pins 2 & 3 closed

CPU SPEED CONFIGURATION

Speed

JP1

JP2

80386

pins 2 & 3 closed

pins 1 & 2 closed

80486

pins 1 & 2 closed

pins 2 & 3 closed

PCI INTERRUPT CONFIGURATION

Interrupt

J73

A

pins 1 & 2 closed

B

pins 3 & 4 closed

C

pins 5 & 6 closed

D

pins 7 & 8 closed

PCI CONFIGURATION

Setting

JQ5

JQ9

JQ11

JQ15

Normal setting

pins 2 & 3 closed

pins 2 & 3 closed

pins 2 & 3 closed

pins 2 & 3 closed

IRQ to PCI slot

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed

Note: Only one IRQ may be redirected.
