UNIDENTIFIED

G2-A 286

Processor

80286 (Exact location unknown)

Processor Speed

12/16MHz

Chip Set

Unknown

Max. Onboard DRAM

4MB

Cache

None

BIOS

AMI

Dimensions

220mm x 220mm

I/O Options

None

NPU Options

80287 (Exact location unknown)

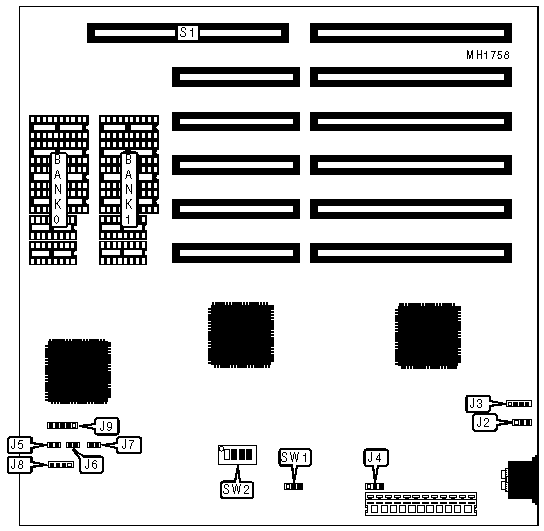

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

J3

Speaker

J8

Turbo LED

J5

Power LED & keylock

J9

Reset switch

J6

External memory card slot

S1

Turbo switch

J7



USER CONFIGURABLE SETTINGS

Function

Jumpe/Switchr

Position

»

Internal battery

J2

pins 1 & 2 closed



External battery

J2

pins 2 & 3 closed

»

Power good signal detect from power supply

J4

pins 1 & 2 closed



Power good signal detect from board

J4

pins 2 & 3 closed

»

Monitor type select color

SW1

pins 1 & 2 closed



Monitor type select monochrome

SW1

pins 2 & 3 closed

»

RAM relocation enabled

SW2/switch 4

Off



RAM relocation disabled

SW2/switch 4

On

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

SW2/1

SW2/2

SW2/3

512KB

(4) 44256

NONE

N/A

N/A

Off

Off

Off

1MB

(4) 44256

(4) 44256

N/A

N/A

Off

On

Off

2MB

N/A

N/A

(4) 256K x 9

NONE

On

Off

Off

4MB

N/A

N/A

(4) 256K x 9

(4) 256K x 9

On

On

Off

Note:Bank 2 & Bank 3 can be found on the external memory card.

Memory card and Onboard memory cannot be used at the same time.
