ZENITH DATA SYSTEMS

Z STATION IIE ("H" and "N" Chassis)

Processor

80486DX/ODP486SX

Processor Speed

25/33/50(internal)/66(internal)MHz

Chip Set

OPTI

Max. Onboard DRAM

128MB

Cache

128KB (optional)

BIOS

AMI/Zenith

Dimensions

355mm x 304mm

I/O Options

16-bit riser card slot, bus mouse port, floppy drive interface, LAN module, parallel port, SCSI module, serial port (2), VGA feature connector

NPU Options

4167

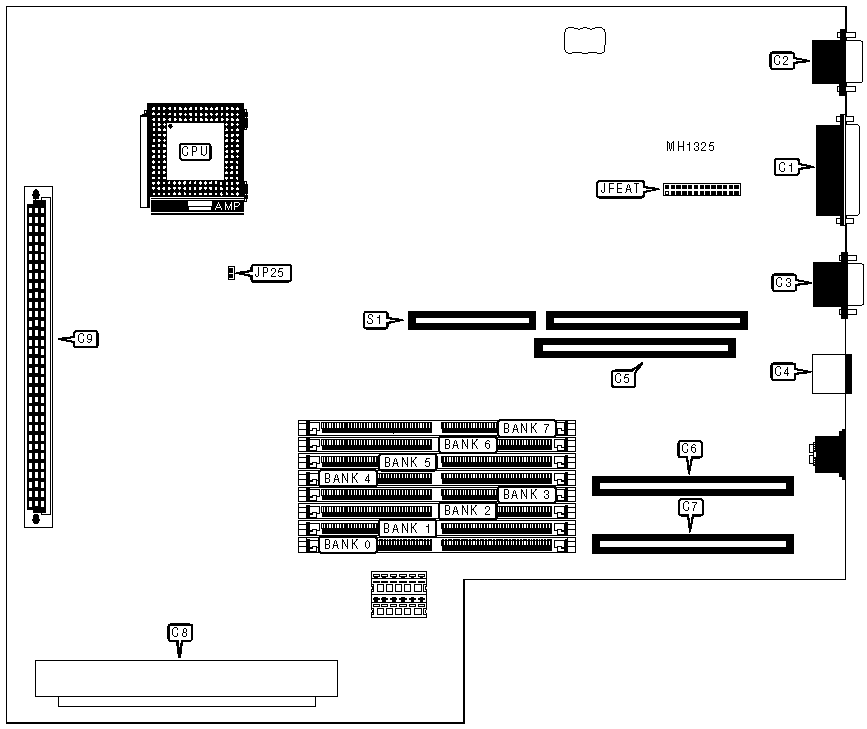

CONNECTIONS

Purpose

Location

Purpose

Location

Parallel port

C1

SCSI module

C7

Serial port 1

C2

IDE interface

C8

Serial port 2

C3

External CPU/Cache module

C9

Bus mouse

C4

VGA feature connector

JFEAT

VGA module

C5

16-bit riser card

S1

LAN module

C6





USER CONFIGURABLE SETTINGS

Function

Jumper

Position

CPU speed select < = 33MHz

JP25

open

CPU speed select > 33MHz

JP25

closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

Bank 4

Bank 5

Bank 6

Bank 7

4MB

256K x 36

256K

x 36

256K

x 36

256K

x 36

NONE

NONE

NONE

NONE

5MB

1M x 36

NONE

256K

x 36

NONE

NONE

NONE

NONE

NONE

8MB

1M x 36

1M x 36

NONE

NONE

NONE

NONE

NONE

NONE

12MB

1M x 36

1M x 36

1M x 36

NONE

NONE

NONE

NONE

NONE

16MB

1M x 36

1M x 36

1M x 36

1M x 36

NONE

NONE

NONE

NONE

16MB

4M x 36

NONE

NONE

NONE

NONE

NONE

NONE

NONE

24MB

4M x 36

NONE

1M x 36

1M x 36

NONE

NONE

NONE

NONE

24MB

4M x 36

NONE

1M x 36

NONE

256K

x 36

256K

x 36

256K

x 36

256K

x 36

32MB

4M x 36

4M x 36

NONE

NONE

NONE

NONE

NONE

NONE

34MB

4M x 36

4M x 36

256K

x 36

256K

x 36

NONE

NONE

NONE

NONE

37MB

4M x 36

4M x 36

1M x 36

256K

x 36

NONE

NONE

NONE

NONE

48MB

4M x 36

4M x 36

4M x 36

NONE

NONE

NONE

NONE

NONE

52MB

4M x 36

4M x 36

4M x 36

1M x 36

NONE

NONE

NONE

NONE

64MB

4M x 36

4M x 36

4M x 36

4M x 36

NONE

NONE

NONE

NONE

68MB

4M x 36

4M x 36

4M x 36

4M x 36

1M x 36

NONE

NONE

NONE

72MB

4M x 36

4M x 36

4M x 36

4M x 36

4M x 36

1M x 36

NONE

NONE

74MB

4M x 36

4M x 36

4M x 36

4M x 36

4M x 36

1M x 36

256K

x 36

256K

x 36

84MB

4M x 36

4M x 36

4M x 36

4M x 36

4M x 36

NONE

1M x 36

NONE

88MB

4M x 36

4M x 36

4M x 36

4M x 36

4M x 36

NONE

1M x 36

1M x 36

96MB

4M x 36

4M x 36

4M x 36

4M x 36

4M x 36

4M x 36

NONE

NONE

104MB

4M x 36

4M x 36

4M x 36

4M x 36

4M x 36

4M x 36

1M x 36

1M x 36

112MB

4M x 36

4M x 36

4M x 36

4M x 36

4M x 36

4M x 36

4M x 36

NONE

128MB

4M x 36

4M x 36

4M x 36

4M x 36

4M x 36

4M x 36

4M x 36

4M x 36
