UNIDENTIFIED
LX400/P VESA LOCAL BUS
Processor |
80486SX/80487SX/80486DX/ODP486SX/80486DX2 |
Processor Speed |
20/25/33/40/50(internal)/50/66(internal)MHz |
Chip Set |
SIS |
Max. Onboard DRAM |
32MB |
SRAM Cache |
64/128/256KB |
BIOS |
AMI |
Dimensions |
254mm x 218mm |
I/O Options |
32-bit VESA card slot (2) |
NPU Options |
None |

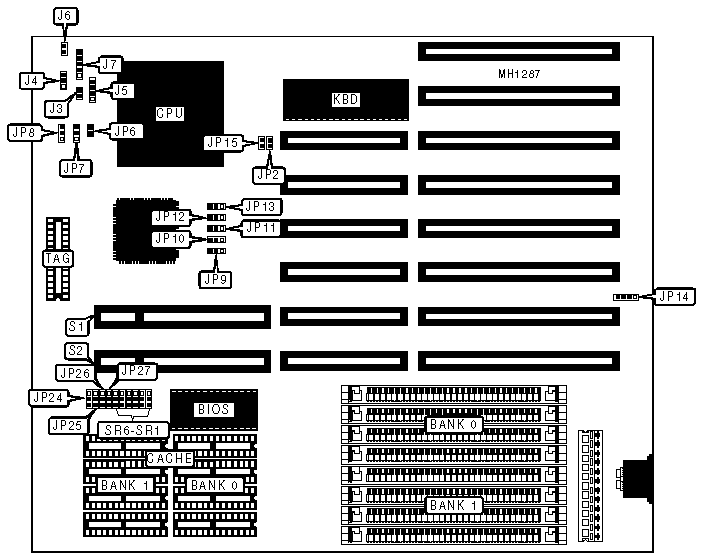

CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
Turbo LED |
J3 |
Reset switch |
J6 |
Turbo switch |
J4 |
Power LED & keylock |
J7 |
Speaker |
J5 |
32-bit VESA card (2) |
S1 & S2 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Jumper |
Position |
|
» |
Factory configured - do not alter |
JP1 |
closed |
» |
Monitor type select color |
JP2 |
closed |
|
Monitor type select monochrome |
JP2 |
open |
» |
Factory configured - do not alter |
JP9 |
unknown |
» |
Power good signal detect from power supply |
JP14 |
pins 1 & 2 closed |
|
Power good signal detect from board |
JP14 |
pins 2 & 3 closed |
» |
Factory configured - do not alter |
JP15 |
unknown |
» |
Factory configured - do not alter |
JP16 |
unknown |
» |
Factory configured - do not alter |
JP24 |
unknown |
» |
Factory configured - do not alter |
JP25 |
unknown |
» |
VESA bus wait states select 0 |
JP26 |
open |
|
VESA bus wait state select 1 |
JP26 |
open |
» |
CPU speed select £ 33MHz |
JP27 |
closed |
|
CPU speed select > 33MHz |
JP27 |
closed |
Note: The locations of JP1 and JP16 are unknown. |
DRAM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
1MB |
(4) 256K x 9 |
NONE |
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
4MB |
(4) 1M x 9 |
NONE |
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
16MB |
(4) 4M x 9 |
NONE |
20MB |
(4) 4M x 9 |
(4) 1M x 9 |
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
CPU SPEED CONFIGURATION |
||||
Speed |
JP10 |
JP11 |
JP12 |
JP13 |
66MHz (internal) |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
50MHz |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
50MHz (internal) |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
33MHz |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
25MHz |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
20MHz |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
CPU JUMPER CONFIGURATION |
|||
CPU |
JP6 |
JP7 |
JP8 |
80486DX |
closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
80487SX |
closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
80486SX |
open |
open |
pins 2 & 3 closed |
SRAM JUMPER CONFIGURATION |
|||
Jumper |
64KB |
128KB |
256KB |
SR1 |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
SR2 |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
SR3 |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
SR4 |
pins 2 & 3 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
SR5 |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 2 & 3 closed |
SR6 |
pins 1 & 2 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
SRAM CONFIGURATION |
|||
Size |
Cache SRAM |
Location |
TAG |
64KB |
(8) 8K x 8 |
Banks 0 & 1 |
(1) 8K x 8 |
128KB |
(4) 32K x 8 |
Bank 0 |
(1) 8K x 8 |
256KB |
(8) 32K x 8 |
Banks 0 & 1 |
(1) 32K x 8 |
