WYSE TECHNOLOGY, INC.

WYSE DECISION 486/25

Processor

80486DX

Processor Speed

25MHz

Chip Set

WYSE

Max. Onboard DRAM

16MB

Cache

128KB

BIOS

WYSE

Dimensions

330mm x 218mm

I/O Options

None

NPU Options

4167

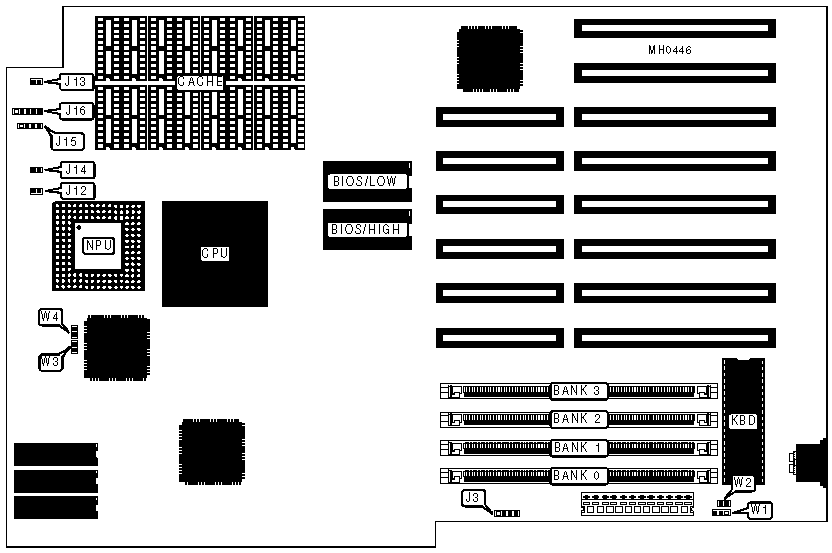

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

J3

Turbo LED

J14

Reset switch

J12

Speaker

J15

Turbo switch

J13

Power LED & keylock

J16

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Monitor type select color

W1

pins 2 & 3 closed



Monitor type select monochrome

W1

pins 1 & 2 closed

»

Factory test disabled

W2

Open



Factory test enabled

W2

Closed

»

Factory configured - do not alter

W3

Open

»

Factory configured - do not alter

W4

Open

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

1MB

(1) 256K x 36

NONE

NONE

NONE

2MB

(1) 256K x 36

(1) 256K x 36

NONE

NONE

3MB

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

NONE

4MB

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

4MB

(1) 1M x 36

NONE

NONE

NONE

5MB

(1) 1M x 36

(1) 256K x 36

NONE

NONE

6MB

(1) 1M x 36

(1) 256K x 36

(1) 256K x 36

NONE

7MB

(1) 1M x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

8MB

(1) 1M x 36

(1) 1M x 36

NONE

NONE

9MB

(1) 1M x 36

(1) 1M x 36

(1) 256K x 36

NONE

10MB

(1) 1M x 36

(1) 1M x 36

(1) 256K x 36

(1) 256K x 36

12MB

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

NONE

13MB

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

(1) 256K x 36

16MB

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

CACHE CONFIGURATION

Size

Bank 0

128KB

(16) 64K x 1
