Processor	80386DX
Processor Speed	33/40MHz
Chip Set	C & T
Max. Onboard DRAM	32MB
Cache	64/128/256KB
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	32-bit external memory card
NPU Options	80387/3167

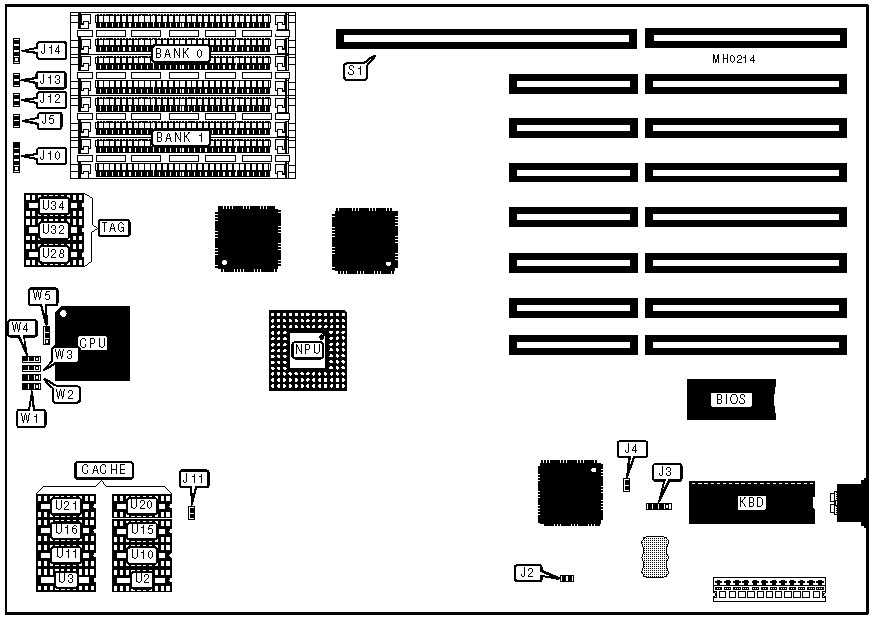

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J3	Turbo LED	J13
Reset switch	J5	Speaker	J14
Power LED & keylock	J10	32-bit external memory card	S1
Turbo switch	J12

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	CMOS memory normal operation	J2	Open
	CMOS memory clear	J2	Closed
»	Monitor type select color	J4	Closed
	Monitor type select monochrome	J4	Open
»	NPU mode select synchronous with CPU	J11	Open
	NPU mode select asynchronous with CPU	J11	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE
32MB	(4) 4M x 9	(4) 4M x 9

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG (U28 & U32)	TAG (U34)
64KB	(4) 8K x 8	(4) 8K x 8	(2) 16K x 4	NONE
128KB	(4) 32K x 8	NONE	(2) 64K x 4	(1) 64K x 4
256KB	(4) 32K x 8	(4) 32K x 8	(2) 64K x 4	(1) 64K x 4
Note: Bank 0 = U2, U3, U15, & U21, Bank 1 = U10, U11, U16, & U20.

CACHE JUMPER CONFIGURATION
Size	W1	W2	W3	W4	W5
64KB	2 & 3	2 & 3	2 & 3	2 & 3	Open
128KB	Open	1 & 2	1 & 2	1 & 2	2 & 3
256KB	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
Note: Pins designated should be in the closed position.
