TMC RESEARCH CORPORATION
CI5TTPX (VER. 1.0)
|
Device Type |
Single board computer |
|
Processor |
CX 6X86/CX 6X86L/AM K5/AM K6/Pentium/Pentium MMX |
|
Processor Speed |
75/90/100/120/133/150/166/200/233/266MHz |
|
Chip Set |
Intel 430TX |
|
Maximum Onboard Memory |
128MB (EDO supported) |
|
Cache |
512KB |
|
BIOS |
Award |
|
Dimensions |
185mm x 129mm |
|
I/O Options |
Floppy drive interface, green PC connector, IDE interfaces (2), parallel port, serial ports (2), USB connectors (2), PC/104 connectors (2), PS/2 mouse interface |
|

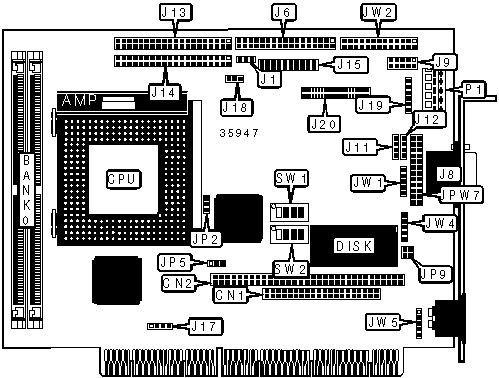

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
PC/104 connector |
CN1 |
Reset switch |
J15/pins 9 & 19 |
|
PC/104 connector |
CN2 |
IDE interface LED |
J15/pins 10 & 20 |
|
Chassis fan power |
J1 |
Power LED & keylock |
J15/pins 11 - 15 |
|
Floppy drive interface |
J6 |
External battery |
J17 |
|
Serial port 1 |
J8 |
CPU fan power |
J18 |
|
Serial port 2 |
J9 |
External ATX connector |
J19 |
|
USB connector 1 |
J11 |
LCD panel connector |
J20 |
|
USB connector 2 |
J12 |
IR connector |
JW1 |
|
IDE interface 1 |
J13 |
Parallel port |
JW2 |
|
IDE interface 2 |
J14 |
PS/2 mouse interface |
JW4 |
|
Speaker |
J15pins 1 - 4 |
Auxiliary keyboard connector |
JW5 |
|
Green PC connector |
J15/pins 6 & 16 |
Power connector |
P1 |
|
Turbo LED |
J15/pins 8 & 18 |
|
|
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
|
Battery type select internal |
J17 |
Pins 1 & 2 closed |
|
|
Battery type select external |
J17 |
Closed |
|
» |
CMOS memory normal operation |
JP5 |
Pins 1 & 2 closed |
|
|
CMOS memory clear |
JP5 |
Pins 2 & 3 closed |
|
|
DISK address select D8000 |
JP9 |
Pins 3 & 4 closed |
|
|
DISK address select D0000 |
JP9 |
Pins 1 & 2 closed |
|
SIMM CONFIGURATION |
|
|
Size |
Bank 0 |
|
8MB |
(2) 1M x 36 |
|
16MB |
(2) 2M x 36 |
|
32MB |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
|
128MB |
(2) 16M x 36 |
|
Note: Board accepts EDO memory. |
|
|
CACHE CONFIGURATION |
|
Note: The location of the cache is unidentified. |
|
CPU SPEED SELECTION (CX 6X86) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
120MHz |
50MHz |
2x |
On |
On |
On |
Off |
|
150MHz |
60MHz |
2x |
Off |
On |
On |
Off |
|
166MHz |
66MHz |
2x |
On |
Off |
On |
Off |
|
CPU SPEED SELECTION (CX 6X86L) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
120MHz |
50MHz |
2x |
On |
On |
On |
Off |
|
150MHz |
60MHz |
2x |
Off |
On |
On |
Off |
|
166MHz |
66MHz |
2x |
On |
Off |
On |
Off |
|
CPU SPEED SELECTION (CX 6X86MX) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
166MHz |
60MHz |
2.5x |
Off |
On |
On |
On |
|
200MHz |
66MHz |
2.5x |
On |
Off |
On |
On |
|
233MHz |
66MHz |
3x |
On |
Off |
Off |
On |
|
266MHz |
66MHz |
3.5x |
On |
Off |
Off |
Off |
|
CPU SPEED SELECTION (AM K5) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
75MHz |
50MHz |
1.5x |
On |
On |
Off |
Off |
|
90MHz |
60MHz |
1.5x |
Off |
On |
Off |
Off |
|
100MHz |
66MHz |
1.5x |
On |
Off |
Off |
Off |
|
133MHz |
66MHz |
2x |
On |
Off |
On |
Off |
|
166MHz |
66MHz |
2.5x |
On |
Off |
On |
On |
|
CPU SPEED SELECTION (AM K6) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
200MHz |
66MHz |
3x |
On |
Off |
Off |
On |
|
233MHz |
66MHz |
3.5x |
On |
Off |
Off |
Off |
|
CPU SPEED SELECTION (INTEL) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
75MHz |
50MHz |
1.5x |
On |
On |
Off |
Off |
|
90MHz |
60MHz |
1.5x |
Off |
On |
Off |
Off |
|
100MHz |
66MHz |
1.5x |
On |
Off |
Off |
Off |
|
120MHz |
60MHz |
2x |
Off |
On |
On |
Off |
|
133MHz |
66MHz |
2x |
On |
Off |
On |
Off |
|
150MHz |
60MHz |
2.5x |
Off |
On |
On |
On |
|
166MHz |
66MHz |
2.5x |
On |
Off |
On |
On |
|
200MHz |
66MHz |
3x |
On |
Off |
Off |
On |
|
CPU SPEED SELECTION (INTEL MMX) |
||||||
|
CPU speed |
Clock speed |
Multiplier |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
166MHz |
66MHz |
2.5x |
On |
Off |
On |
On |
|
200MHz |
66MHz |
3x |
On |
Off |
Off |
On |
|
233MHz |
66MHz |
3.5x |
On |
Off |
Off |
Off |
|
CPU VOLTAGE SELECTION (SINGLE) |
|||||
|
Voltage |
JP2 |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
3.5v |
1 & 2 |
On |
On |
On |
On |
|
Note: Pins designated should be in the closed position. |
|||||
|
CPU VOLTAGE SELECTION (DUAL) |
||||||
|
Voltage |
V core |
JP2 |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
|
3.3v |
2.0v |
2 & 3 |
Off |
Off |
Off |
Off |
|
3.3v |
2.1v |
2 & 3 |
On |
Off |
Off |
Off |
|
3.3v |
2.2v |
2 & 3 |
Off |
On |
Off |
Off |
|
3.3v |
2.3v |
2 & 3 |
On |
On |
Off |
Off |
|
3.3v |
2.4v |
2 & 3 |
Off |
Off |
On |
Off |
|
3.3v |
2.5v |
2 & 3 |
On |
Off |
On |
Off |
|
3.3v |
2.6v |
2 & 3 |
Off |
On |
On |
Off |
|
3.3v |
2.7v |
2 & 3 |
On |
On |
On |
Off |
|
3.3v |
2.8v |
2 & 3 |
Off |
Off |
Off |
On |
|
3.3v |
2.9v |
2 & 3 |
On |
Off |
Off |
On |
|
3.3v |
3.0v |
2 & 3 |
Off |
On |
Off |
On |
|
3.3v |
3.2v |
2 & 3 |
Off |
Off |
On |
On |
|
3.3v |
3.5v |
2 & 3 |
On |
On |
On |
On |
|
Note: Pins designated should be in the closed position. |
||||||
|
SERIAL PORT 2 SELECTION |
|
|
Setting |
JPW7 |
|
RS-232 |
Open |
|
RS-422 |
Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8, 11 & 12, 15 & 16, 17 & 18, 19 & 20, 23 & 24 closed |
|
RS-485 |
Pins 1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10, 11 & 12, 13 & 14, 15 & 16, 17 & 18, 19 & 20, 21 & 22, 23 & 24 closed |
