TECHNOLAND, INC.
PEAK 550
|
Device Type |
Singel board computer |
|
Processor |
CX M1/CX M2/AM K5/AM K6/Pentium |
|
Processor Speed |
75/90/100/120/133/150/166/180/200/233MHz |
|
Chip Set |
SIS |
|
Video Chip Set |
SIS |
|
Maximum Onboard Memory |
128MB (EDO supported) Unified Memory Architecture (UMA) |
|
Cache |
256/512KB |
|
BIOS |
Award |
|
Dimensions |
185mm x 122mm |
|
I/O Options |
Floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2), VGA port, USB connector |
|
NPU Options |
None |
|

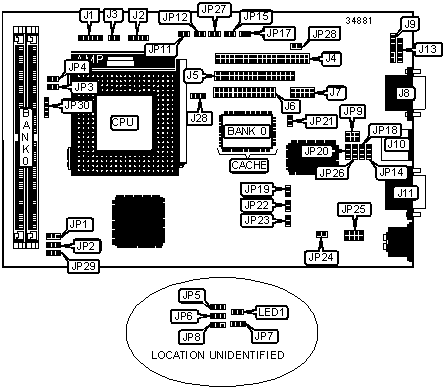

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Power LED & keylock |
J1 |
VGA port |
J8 |
|
Speaker |
J2 |
USB connector |
J9 |
|
Reset switch |
J3 |
PS/2 mouse port |
J10 |
|
IDE interface |
J4 |
Serial port 1 |
J11 |
|
Floppy drive interface |
J5 |
Auxiliary keyboard connector |
J13 |
|
Parallel port |
J6 |
Chassis fan power |
J28 |
|
Serial port 2 |
J7 |
IDE interface LED |
LED1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
On board I/O enabled |
JP21 |
Open |
|
On board I/O disabled |
JP21 |
Closed | |
|
» |
CMOS memory normal operation |
JP23 |
Open |
|
CMOS memory clear |
JP23 |
Closed | |
|
» |
BIOS programming disabled |
JP27 |
Open |
|
BIOS programming enabled |
JP27 |
Closed | |
|
» |
Fan control disabled |
JP28 |
Open |
|
Fan control enabled |
JP28 |
Closed | |
|
SIMM CONFIGURATION | |
|
Size |
Bank 0 |
|
8MB |
(2) 1M x 36 |
|
16MB |
(2) 2M x 36 |
|
32MB |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
|
128MB |
(2) 16M x 36 |
|
Note: Board accepts EDO memory. | |
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
256KB |
(1) 32K x 64 |
|
512KB |
(1) 64K x 64 |
|
CACHE JUMPER CONFIGURATION | |
|
Size |
JP17 |
|
256KB |
Open |
|
512KB |
Closed |
|
CACHE TYPE CONFIGURATION | ||
|
Type |
JP11 | |
| » |
Write back |
Open |
|
Write through |
Closed | |
|
CACHE PIPELINE CONFIGURATION | ||
|
Setting |
JP12 | |
| » |
Enabled |
Closed |
|
Disabled |
Open | |
|
CACHE/CPU TYPE CONFIGURATION | |
|
Type |
JP15 |
|
Cyrix |
Closed |
|
AMD |
Open |
|
Intel |
Open |
|
VIDEO MEMORY CONFIGURATION |
|
Note: The size and location of the video memory is unidentified. |
|
CPU SPEED SELECTION (CX M1) | |||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP8 |
JP19 |
JP22 |
|
120MHz |
60MHz |
2x |
2 & 3 |
1 & 2 |
2 & 3 |
Open |
Closed |
|
150MHz |
60MHz |
2x |
2 & 3 |
1 & 2 |
2 & 3 |
Open |
Closed |
|
166MHz |
66MHz |
2x |
2 & 3 |
1 & 2 |
2 & 3 |
Closed |
Open |
|
Note: Pins designated should be in the closed position. | |||||||
|
CPU SPEED SELECTION (CX M2) | |||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP8 |
JP19 |
JP22 |
|
200MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
2 & 3 |
Closed |
Open |
|
233MHz |
66MHz |
3.5x |
1 & 2 |
1 & 2 |
1 & 2 |
Closed |
Open |
|
Note: Pins designated should be in the closed position. | |||||||
|
CPU SPEED SELECTION (AM K5) | |||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP8 |
JP19 |
JP22 |
|
75MHz |
50MHz |
1.5x |
1 & 2 |
1 & 2 |
2 & 3 |
Closed |
Closed |
|
90MHz |
60MHz |
1.5x |
1 & 2 |
1 & 2 |
2 & 3 |
Open |
Closed |
|
100MHz |
66MHz |
1.5x |
1 & 2 |
1 & 2 |
2 & 3 |
Closed |
Open |
|
120MHz |
60MHz |
2x |
2 & 3 |
1 & 2 |
2 & 3 |
Open |
Closed |
|
133MHz |
66MHz |
2x |
2 & 3 |
1 & 2 |
2 & 3 |
Closed |
Open |
|
150MHz |
60MHz |
2.5x |
2 & 3 |
2 & 3 |
2 & 3 |
Open |
Closed |
|
166MHz |
66MHz |
2.5x |
2 & 3 |
2 & 3 |
2 & 3 |
Closed |
Open |
|
Note: Pins designated should be in the closed position. | |||||||
|
CPU SPEED SELECTION (AM K6) | |||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP8 |
JP19 |
JP22 |
|
166MHz |
66MHz |
2.5x |
2 & 3 |
2 & 3 |
2 & 3 |
Closed |
Open |
|
200MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
2 & 3 |
Closed |
Open |
|
233MHz |
66MHz |
3.5x |
1 & 2 |
1 & 2 |
2 & 3 |
Closed |
Open |
|
Note: Pins designated should be in the closed position. | |||||||
|
CPU SPEED SELECTION (INTEL) | |||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP8 |
JP19 |
JP22 |
|
75MHz |
50MHz |
1.5x |
1 & 2 |
1 & 2 |
2 & 3 |
Closed |
Closed |
|
90MHz |
60MHz |
1.5x |
1 & 2 |
1 & 2 |
2 & 3 |
Open |
Closed |
|
100MHz |
66MHz |
1.5x |
1 & 2 |
1 & 2 |
2 & 3 |
Closed |
Open |
|
120MHz |
60MHz |
2x |
2 & 3 |
1 & 2 |
2 & 3 |
Open |
Closed |
|
133MHz |
66MHz |
2x |
2 & 3 |
1 & 2 |
2 & 3 |
Closed |
Open |
|
150MHz |
60MHz |
2.5x |
2 & 3 |
2 & 3 |
2 & 3 |
Open |
Closed |
|
166MHz |
66MHz |
2.5x |
2 & 3 |
2 & 3 |
2 & 3 |
Closed |
Open |
|
180MHz |
60MHz |
3x |
1 & 2 |
2 & 3 |
2 & 3 |
Open |
Closed |
|
200MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
2 & 3 |
Closed |
Open |
|
Note: Pins designated should be in the closed position. | |||||||
|
CPU SPEED SELECTION (INTEL MMX) | |||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP8 |
JP19 |
JP22 |
|
166MHz |
66MHz |
2.5x |
2 & 3 |
2 & 3 |
2 & 3 |
Closed |
Open |
|
200MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
2 & 3 |
Closed |
Open |
|
233MHz |
66MHz |
3.5x |
1 & 2 |
1 & 2 |
2 & 3 |
Closed |
Open |
|
Note: Pins designated should be in the closed position. | |||||||
|
CPU VOLTAGE SELECTION | |||
|
Voltage |
JP3 |
JP4 |
JP30 |
|
2.8v |
Closed |
Closed |
Open |
|
2.9v |
Closed |
Closed |
Pins 1 & 2 closed |
|
3.2v |
Closed |
Closed |
Pins 3 & 4 closed |
|
3.3v |
Open |
Open |
Open |
|
SERIAL PORT SELECTION | |||||
|
Setting |
JP9 |
JP14 |
JP18 |
JP20 |
JP26 |
|
RS-232 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
|
RS-422 |
3 & 4 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
|
RS-485 |
5 & 6 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. | |||||
|
ON BOARD VIDEO SELECTION | ||||
|
Setting |
JP1 |
JP2 |
JP29 | |
| » |
Enabled |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
Disabled |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
Pins 2 & 3 closed | |
|
M SYSTEM ADDRESS SELECTION | ||
|
Setting |
JP25 | |
|
C0000 |
Pins 1 & 2 closed | |
|
C8000 |
Pins 3 & 4 closed | |
|
D0000 |
Pins 5 & 6 closed | |
| » |
D8000 |
Pins 7 & 8 closed |
|
PS/2 MOUSE SELECTION | ||
|
Setting |
JP7 |
JP24 |
|
Enabled |
Pins 1 & 2 closed |
Open |
|
Disabled |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
