Processor	Pentium
Processor Speed	75/90/100/120/133/150/166/180/200MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	256MB (EDO supported)
Maximum Video Memory	None
Cache	256/512KB
BIOS	Award
Dimensions	338mm x 122mm
I/O Options	Floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connector, PC/104 connectors (2)
NPU Options	None

CONNECTIONS

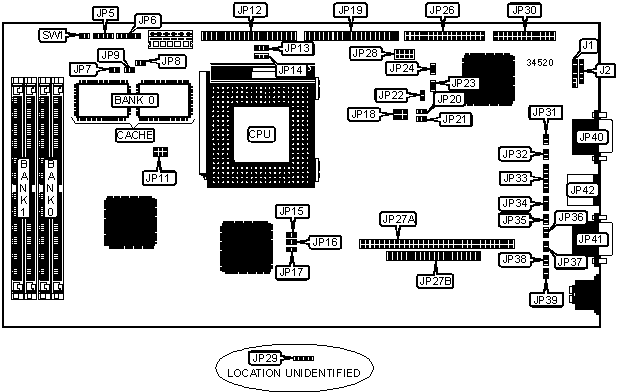

Purpose	Location	Purpose	Location
USB connector	J1	PC/104 connector	JP27A
Auxiliary keyboard connector	J2	PC/104 connector	JP27B
Speaker	JP5	IR connector	JP29
Power LED & keylock	JP6	Parallel port	JP30
+5v power	JP8	Serial port 2	JP40
IDE interface 1	JP12	Serial port 1	JP41
IDE interface 2	JP19	PS/2 mouse port	JP42
IDE interface LED	JP24	Reset switch	SW1
Floppy drive interface	JP26

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	CMOS memory normal operation	JP31	Open
	CMOS memory clear	JP31	Closed
»	On board I/O enabled	JP32	Open
	On board I/O disabled	JP32	Closed
»	BIOS type select EPROM	JP33	Pins 2 & 3, 4 & 5 closed
	BIOS type select flash BIOS	JP33	Pins 1 & 2, 5 & 6 closed
»	Monitor type select color	JP35	Closed
	Monitor type select monochrome	JP35	Open

SIMM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	None
16MB	(2) 2M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
24MB	(2) 2M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36
64MB	(2) 8M x 36	None
64MB	(2) 4M x 36	(2) 4M x 36
96MB	(2) 8M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36
128MB	(2) 16M x 36	None
192MB	(2) 16M x 36	(2) 8M x 36
256MB	(2) 16M x 36	(2) 16M x 36
Note: Board accepts EDO memory.

SIMM REFRESH CONFIGURATION
Setting		JP15
	50MHz	Closed
	60MHz	Closed
»	66MHz	Open

CACHE CONFIGURATION
Size	Bank 0
256KB	(2) 32K x 32
512KB	(2) 64K x 32

CACHE JUMPER CONFIGURATION
Size	JP7	JP11/pins 3 & 4	JP11/pins 5 & 6
None	N/A	Closed	Closed
256KB	Open	Open	Closed
512KB	Closed	Closed	Open

CACHE SIZE CONFIGURATION
Size		JP11/pins 1 & 2
»	Extended	Open
	Normal	Closed

CPU SPEED SELECTION
CPU speed	Clock speed	Multiplier	JP13	JP14	JP16	JP17	JP23
75MHz	50MHz	1.5x	1 & 2	1 & 2	Closed	Closed	Open
90MHz	60MHz	1.5x	1 & 2	1 & 2	Closed	Open	Closed
100MHz	66MHz	1.5x	1 & 2	1 & 2	Open	Closed	Closed
120MHz	60MHz	2x	2 & 3	1 & 2	Closed	Open	Closed
133MHz	66MHz	2x	2 & 3	1 & 2	Open	Closed	Closed
150MHz	60MHz	2.5x	2 & 3	2 & 3	Closed	Open	Closed
166MHz	66MHz	2.5x	2 & 3	2 & 3	Open	Closed	Closed
180MHz	60MHz	3x	1 & 2	2 & 3	Closed	Open	Closed
200MHz	66MHz	3x	1 & 2	2 & 3	Open	Closed	Closed
Note: Pins designated should be in the closed position.

CPU TYPE SELECTION
Type	JP18	JP22
P54C	Pins 1 & 2, 3 & 4, 5 & 6 closed	Pins 1 & 2 closed
P55C	Open	Open

CPU TYPE SELECTION
Type	JP9
Cyrix	Closed
Intel	Open

CPU VOLTAGE SELECTION
Voltage		JP20	JP21
	2.8v	Closed	Open
»	3.3v	Open	Closed

M SYSTEM ADDRESS SELECTION
Setting		JP28
	C0000	Pins 1 & 2 closed
	C8000	Pins 3 & 4 closed
»	D0000	Pins 5 & 6 closed
	D8000	Pins 7 & 8 closed

WATCHDOG SELECTION
Setting		JP34
»	Reset	Pins 2 & 3 closed
	NMI	Pins 1 & 2 closed
	Disabled	Open

WATCHDOG TIMER SELECTION
Delay		JP36	JP37	JP38	JP39
	.5 second	Open	Open	Open	Closed
	1 second	Open	Open	Closed	Open
	2 seconds	Open	Closed	Open	Open
»	4 seconds	Closed	Open	Open	Open
