Processor	Pentium Pro
Processor Speed	200MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	512MB (EDO supported)
Maximum Video Memory	None
Cache	256/512KB (located on the Pentium Pro CPU)
BIOS	Unidentified
Dimensions	355mm x 304mm
I/O Options	32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), SCSI interface, parallel port, PS/2 mouse port, serial ports (2), VRM connector, USB connectors (2), RJ-45 port, line out connector, line in connector, game/MIDI port, voice/modem port, CD line in connector, wavetable connector, audio in connector
NPU Options	None

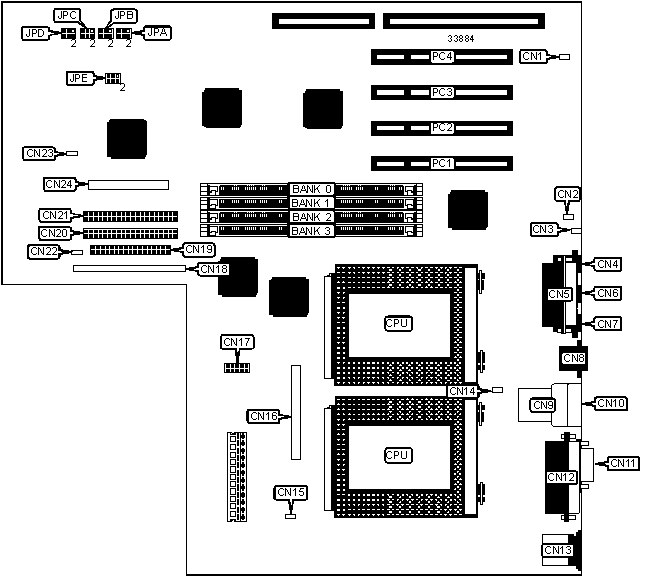

CONNECTIONS
Purpose	Location	Purpose	Location
Wavetable connector	CN1	Chassis fan power	CN14
CD line in connector	CN2	Chassis fan power	CN15
Voice/modem port	CN3	VRM connector	CN16
Audio in connector	CN4	Serial port 2	CN17
Game/MIDI port	CN5	Front panel connector	CN18
Line in connector	CN6	Floppy drive interface	CN19
Line out connector	CN7	IDE interface 1	CN20
RJ-45 port	CN8	IDE interface 2	CN21
USB connector	CN9	SCSI LED	CN22
USB connector	CN10	Chassis fan power	CN23
Serial port 1	CN11	SCSI interface	CN24
Parallel port	CN12	32-bit PCI slots	PC1 - PC4
PS/2 mouse port	CN13

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Flash BIOS write protect disabled	JPA	Pins 3 & 5 closed
	Flash BIOS write protect enabled	JPA	Pins 1 & 3 closed
»	Flash BIOS normal operation	JPA	Pins 4 & 6 closed
	Flash BIOS recovery mode	JPA	Pins 2 & 4 closed
»	Factory configured - do not alter	JPB	Unidentified

DIMM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
16MB	(1) 2M x 64	None	None	None
32MB	(1) 2M x 64	(1) 2M x 64	None	None
32MB	(1) 4M x 64	None	None	None
48MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64	None
64MB	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64	(1) 2M x 64
64MB	(1) 4M x 64	(1) 4M x 64	None	None
64MB	(1) 8M x 64	None	None	None
96MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64	None
128MB	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64	(1) 4M x 64
128MB	(1) 8M x 64	(1) 8M x 64	None	None
128MB	(1) 16M x 64	None	None	None
192MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64	None
256MB	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64	(1) 8M x 64
256MB	(1) 16M x 64	(1) 16M x 64	None	None
384MB	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64	None
512MB	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64	(1) 16M x 64
Note: Board accepts EDO memory.

DIMM VOLTAGE CONFIGURATION
Voltage		JPE
	50ns	Pins 1 & 3, 2 & 4 closed
»	60ns	Pins 3 & 5, 4 & 6 closed

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium Pro CPU.

CPU SPEED SELECTION
Speed	JPC	JPD
200MHz	Pins 3 & 5, 4 & 6 closed	Pins 3 & 5, 4 & 6 closed
