SUPER MICRO

P54CT-PCI (REV. 1.2)

Processor

Pentium

Processor Speed

75/90/100MHz

Chip Set

OPTI

Max. Onboard DRAM

128MB

Cache

256/512/1024KB

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

32-bit VESA local bus slot, 32-bit PCI slots (4), green PC connector

NPU Options

None

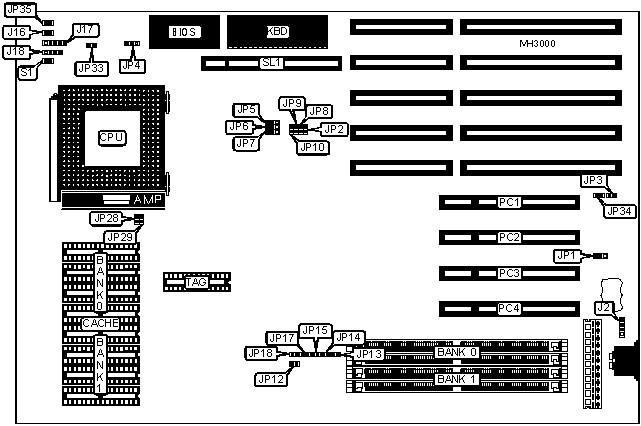

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

J2

Turbo LED

JP35

Turbo switch

J16

32-bit PCI slots

PC1 - PC4

Power LED & keylock

J17

Reset switch

S1

Speaker

J18

32-bit VESA local bus slot

SL1

Green PC connector

JP34



USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

CMOS memory normal operation

JP1

pins 2 & 3 closed



CMOS memory clear

JP1

pins 1 & 2 closed

»

Factory configured - do not alter

JP2

Open

»

Factory configured - do not alter

JP3

Open

»

Factory configured - do not alter

JP4

pins 2 & 3 closed

»

Factory configured - do not alter

JP5

pins 1 & 2 closed

»

Factory configured - do not alter

JP6

pins 1 & 2 closed

»

Factory configured - do not alter

JP7

pins 1 & 2 closed

»

Factory configured - do not alter

JP12

Open

»

Factory configured - do not alter

JP13

Open

»

Factory configured - do not alter

JP14

Closed

»

Factory configured - do not alter

JP15

Open

»

Factory configured - do not alter

JP17

Closed

»

Factory configured - do not alter

JP18

Closed

»

Factory configured - do not alter

JP33

Open

DRAM CONFIGURATION

Size

Bank 0

Bank 1

2MB

(2) 256K x 36

NONE

4MB

(2) 512K x 36

NONE

4MB

(2) 256K x 36

(2) 256K x 36

6MB

(2) 256K x 36

(2) 512K x 36

8MB

(2) 1M x 36

NONE

8MB

(2) 512K x 36

(2) 512K x 36

10MB

(2) 256K x 36

(2) 1M x 36

12MB

(2) 512K x 36

(2) 1M x 36

16MB

(2) 2M x 36

NONE

16MB

(2) 1M x 36

(2) 1M x 36

18MB

(2) 256K x 36

(2) 2M x 36

20MB

(2) 512K x 36

(2) 2M x 36

24MB

(2) 1M x 36

(2) 2M x 36

32MB

(2) 4M x 36

NONE

32MB

(2) 2M x 36

(2) 2M x 36

34MB

(2) 256K x 36

(2) 4M x 36

36MB

(2) 512K x 36

(2) 4M x 36

40MB

(2) 1M x 36

(2) 4M x 36

48MB

(2) 2M x 36

(2) 4M x 36

64MB

(2) 8M x 36

NONE

64MB

(2) 4M x 36

(2) 4M x 36

66MB

(2) 256K x 36

(2) 8M x 36

68MB

(2) 512K x 36

(2) 8M x 36

72MB

(2) 1M x 36

(2) 8M x 36

80MB

(2) 2M x 36

(2) 8M x 36

96MB

(2) 4M x 36

(2) 8M x 36

128MB

(2) 8M x 36

(2) 8M x 36

CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG

256KB

(4) 32K x 8

(4) 32K x 8

(1) 32K x 8

512KB

(4) 64K x 8

(4) 64K x 8

(1) 32K x 8

1MB

(4) 128K x 8

(4) 128K x 8

(1) 32K x 8

CACHE JUMPER CONFIGURATION

Size

JP28

JP29

256KB

Open

Open

512KB

Closed

Open

1MB

Closed

Closed

CPU SPEED CONFIGURATION

Speed

JP8

JP9

JP10

75MHz

Closed

Closed

Open

90MHz

Closed

Open

Closed

100MHz

Open

Closed

Open
