SHUTTLE COMPUTER INTERNATIONAL, INC.
HOT-539
|
Processor |
Pentium |
|
Processor Speed |
75/90/100/120/133MHz |
|
Chip Set |
UMC |
|
Max. Onboard DRAM |
256MB |
|
Cache |
256/512/1024/2048KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, IDE interface (2), parallel port, PS/2 mouse interface, serial ports (2) |
|
NPU Options |
None |
|

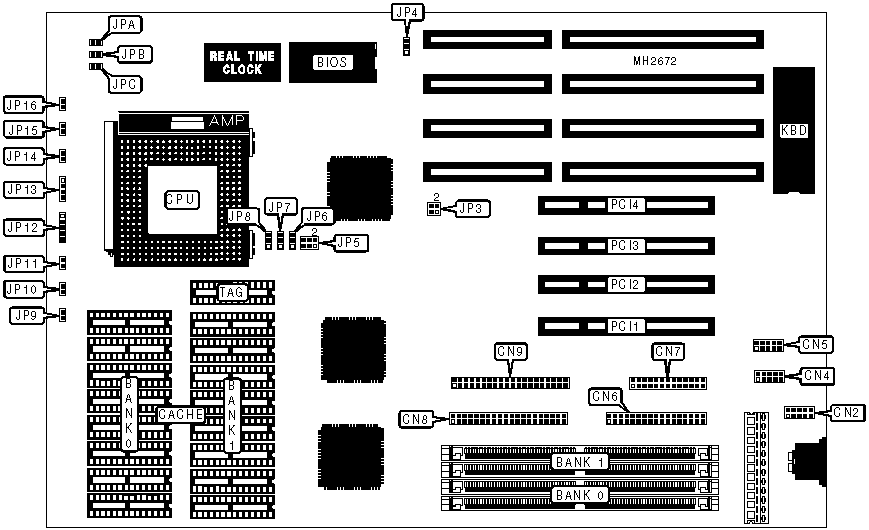

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
PS/2 mouse interface |
CN2 |
IDE interface LED |
JP10 |
|
Serial port 1 |
CN4 |
EPMI connector |
JP11 |
|
Serial port 2 |
CN5 |
Power LED & keylock |
JP12 |
|
Floppy drive interface |
CN6 |
Speaker |
JP13 |
|
Parallel port |
CN7 |
Turbo LED |
JP14 |
|
IDE interface (primary) |
CN8 |
Turbo switch |
JP15 |
|
IDE interface (secondary) |
CN9 |
Reset switch |
JP16 |
|
External battery |
JP9 |
32-bit PCI slots |
PCI1 - PCI4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Flash voltage BIOS select 5v |
JP4 |
pins 1 & 2 closed |
|
Flash voltage BIOS select 12v |
JP4 |
pins 2 & 3 closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
2MB |
(2) 256K x 36 |
NONE |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
|
4MB |
(2) 512K x 36 |
NONE |
|
6MB |
(2) 256K x 36 |
(2) 512K x 36 |
|
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
|
8MB |
(2) 1M x 36 |
NONE |
|
10MB |
(2) 256K x 36 |
(2) 1M x 36 |
|
12MB |
(2) 512K x 36 |
(2) 1M x 36 |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
16MB |
(2) 2M x 36 |
NONE |
|
18MB |
(2) 256K x 36 |
(2) 2M x 36 |
|
20MB |
(2) 512K x 36 |
(2) 2M x 36 |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
32MB |
(2) 4M x 36 |
NONE |
|
34MB |
(2) 256K x 36 |
(2) 4M x 36 |
|
36MB |
(2) 512K x 36 |
(2) 4M x 36 |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
64MB |
(2) 8M x 36 |
NONE |
|
66MB |
(2) 256K x 36 |
(2) 8M x 36 |
|
68MB |
(2) 512K x 36 |
(2) 8M x 36 |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
128MB |
(2) 16M x 36 |
NONE |
|
130MB |
(2) 256K x 36 |
(2) 16M x 36 |
|
132MB |
(2) 512K x 36 |
(2) 16M x 36 |
|
136MB |
(2) 1M x 36 |
(2) 16M x 36 |
|
144MB |
(2) 2M x 36 |
(2) 16M x 36 |
|
160MB |
(2) 4M x 36 |
(2) 16M x 36 |
|
192MB |
(2) 8M x 36 |
(2) 16M x 36 |
|
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
|
CACHE CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
TAG |
|
256KB |
(8) 32K x 8 |
NONE |
(1) 8K x 8 |
|
512KB |
(8) 32K x 8 |
(8) 32K x 8 |
(1) 32K x 8 |
|
512KB |
(8) 64K x 8 |
NONE |
(1) 32K x 8 |
|
1024KB |
(8) 64K x 8 |
(8) 64K x 8 |
(1) 64K x 8 |
|
1024KB |
(8) 128K x 8 |
NONE |
(1) 64K x 8 |
|
2048KB |
(8) 128K x 8 |
(8) 128K x 8 |
(1) 128K x 8 |
|
CACHE JUMPER CONFIGURATION | ||||
|
Size |
JP5 |
JP6 |
JP7 |
JP8 |
|
256KB |
Open |
Open |
Open |
1 & 2 |
|
512KB |
1 & 2 |
Open |
Open |
2 & 3 |
|
512KB |
1 & 2 |
Open |
2 & 3 |
1 & 2 |
|
1024KB |
1 & 2, 3 & 4 |
Open |
1 & 2 |
2 & 3 |
|
1024KB |
1 & 2, 3 & 4 |
1 & 2 |
2 & 3 |
1 & 2 |
|
2048KB |
1 & 2, 3 & 4, 5 & 6 |
2 & 3 |
1 & 2 |
2 & 3 |
|
Note: Pins designated should be in closed position. | ||||
|
CPU SPEED CONFIGURATION | ||
|
CPU Speed |
Clock Speed |
JP3 |
|
75MHz |
50MHz |
Open |
|
90MHz |
60MHz |
pins 3 & 4 closed |
|
100MHz |
50MHz |
Open |
|
100MHz |
66MHz |
pins 1 & 2, 3 & 4 closed |
|
120MHz |
60MHz |
pins 3 & 4 closed |
|
133MHz |
66MHz |
pins 1 & 2, 3 & 4 closed |
|
CPU VOLTAGE CONFIGURATION | |||
|
Voltage |
JPA |
JPB |
JPC |
|
3.3v |
Closed |
Open |
Open |
|
3.45v |
Open |
Closed |
Open |
|
3.6v |
Open |
Open |
Closed |
