SEANIX TECHNOLOGY, INC.

P5-PCI-VL

Processor

Pentium

Processor Speed

60/66MHz

Chip Set

OPTI

Max. Onboard DRAM

128MB

Cache

256/512/1024KB

BIOS

Award

Dimensions

330mm x 218mm

I/O Options

32-bit VESA local bus slots (2), 32-bit PCI slots (3)

NPU Options

None

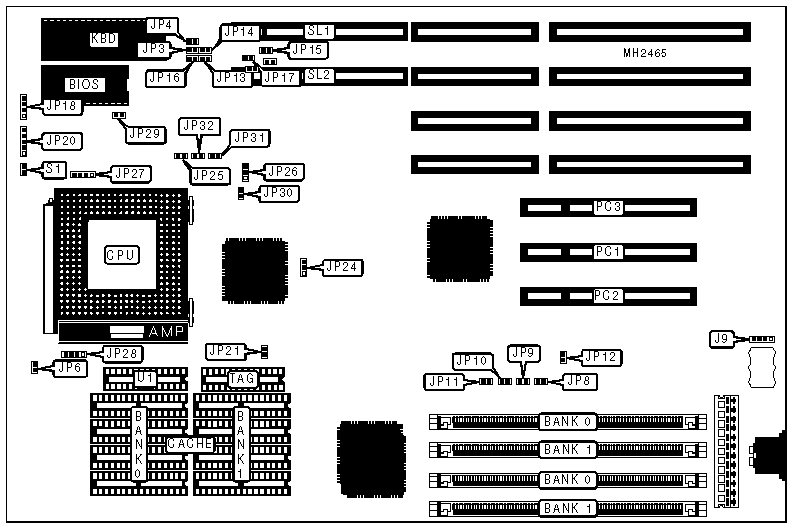

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

J9

Chassis fan power

JP28

Speaker

JP18

32-bit PCI slots

PC1 - PC3

Power LED & keylock

JP20

Reset switch

S1

Secondary CPU fan

JP27

32-bit VESA local bus slots

SL1 & SL2

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Factory configured - do not alter

JP3

N/A

»

Factory configured - do not alter

JP4

N/A

»

Factory configured - do not alter

JP8

N/A

»

Factory configured - do not alter

JP9

Closed

»

Factory configured - do not alter

JP10

N/A

»

Factory configured - do not alter

JP11

N/A

»

Factory configured - do not alter

JP12

N/A

»

Factory configured - do not alter

JP13

N/A

»

Factory configured - do not alter

JP14

N/A

»

Factory configured - do not alter

JP15

N/A

»

Factory configured - do not alter

JP16

N/A

»

Factory configured - do not alter

JP17

N/A

»

Factory configured - do not alter

JP24

N/A

»

Flash BIOS write protect enabled

JP29

Open



Flash BIOS write protect disabled

JP29

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

2MB

(2) 256K x 36

NONE

4MB

(2) 512K x 36

NONE

4MB

(2) 256K x 36

(2) 256K x 36

6MB

(2) 256K x 36

(2) 512K x 36

8MB

(2) 1M x 36

NONE

8MB

(2) 512K x 36

(2) 512K x 36

10MB

(2) 256K x 36

(2) 1M x 36

12MB

(2) 512K x 36

(2) 1M x 36

16MB

(2) 2M x 36

NONE

16MB

(2) 1M x 36

(2) 1M x 36

18MB

(2) 256K x 36

(2) 2M x 36

20MB

(2) 512K x 36

(2) 2M x 36

24MB

(2) 1M x 36

(2) 2M x 36

32MB

(2) 4M x 36

NONE

32MB

(2) 2M x 36

(2) 2M x 36

34MB

(2) 256K x 36

(2) 4M x 36

36MB

(2) 512K x 36

(2) 4M x 36

40MB

(2) 1M x 36

(2) 4M x 36

48MB

(2) 2M x 36

(2) 4M x 36

64MB

(2) 8M x 36

NONE

64MB

(2) 4M x 36

(2) 4M x 36

66MB

(2) 256K x 36

(2) 8M x 36

68MB

(2) 512K x 36

(2) 8M x 36

72MB

(2) 1M x 36

(2) 8M x 36

80MB

(2) 2M x 36

(2) 8M x 36

96MB

(2) 4M x 36

(2) 8M x 36

128MB

(2) 8M x 36

(2) 8M x 36

CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG

DIRTY BIT (U1)

256KB

(4) 32K x 8

(4) 32K x 8

(1) 32K x 8

(1) 32K x 8

512KB

(4) 64K x 8

(4) 64K x 8

(1) 32K x 8

(1) 32K x 8

1MB

(4) 128K x 8

(4) 128K x 8

(1) 32K x 8

(1) 32K x 8

CACHE JUMPER CONFIGURATION

Size

JP6

JP21

256KB

Open

Open

512KB

Open

Closed

1MB

Closed

Closed

CPU FREQUENCY CONFIGURATION (AV9107-4)

Speed

JP25

JP26

JP30

JP31

JP32

50MHz

Closed

pins 2 & 3 closed

Closed

Open

Closed

60MHz

Open

pins 1 & 2 closed

Closed

Open

Open

66MHz

Closed

pins 2 & 3 closed

Open

Closed

Closed

CPU FREQUENCY CONFIGURATION (CH9007E)

Speed

JP25

JP26

JP30

JP31

JP32

50MHz

Open

pins 2 & 3 closed

Open

Open

Closed

60MHz

Open

pins 2 & 3 closed

Open

Closed

Open

66MHz

Open

pins 2 & 3 closed

Closed

Closed

Open
