TYAN COMPUTER CORPORATION
S1452 REV. 1.0
|

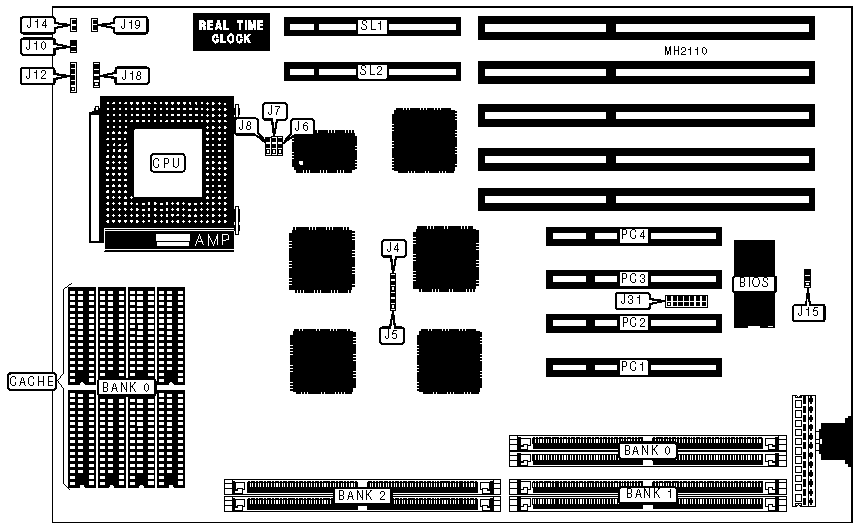

Processor |
Pentium |
|
Processor Speed |
90/100MHz |
|
Chip Set |
Intel |
|
Max. Onboard DRAM |
192MB |
|
Cache |
256/512KB |
|
BIOS |
Award |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI bus slots (4), 32-bit VESA local bus slots (2) |
|
NPU Options |
None |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Turbo LED |
J10 |
Reset switch |
J19 |
|
Power LED & keylock |
J12 |
IRQ legacy connector |
J31 |
|
Turbo switch |
J14 |
32-bit PCI bus slots |
PC1 - PC4 |
|
Speaker |
J18 |
32-bit VESA Local bus slots |
SL1 & SL2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
|
» |
Flash BIOS voltage select 5 volt |
J15 |
pins 2 & 3 closed |
|
Flash BIOS voltage select 12 volt |
J15 |
pins 1 & 2 closed | |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
2MB |
(2) 256K x 36 |
NONE |
NONE |
|
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
NONE |
|
4MB |
(2) 512K x 36 |
NONE |
NONE |
|
6MB |
(2) 256K x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
6MB |
(2) 512K x 36 |
(2) 256K x 36 |
NONE |
|
6MB |
(2) 256K x 36 |
(2) 512K x 36 |
NONE |
|
8MB |
(2) 512K x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
NONE |
|
8MB |
(2) 1M x 36 |
NONE |
NONE |
|
10MB |
(2) 1M x 36 |
(2) 256K x 36 |
NONE |
|
10MB |
(2) 256K x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
10MB |
(2) 256K x 36 |
(2) 1M x 36 |
NONE |
|
12MB |
(2) 1M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
12MB |
(2) 1M x 36 |
(2) 512K x 36 |
NONE |
|
12MB |
(2) 512K x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
12MB |
(2) 512K x 36 |
(2) 1M x 36 |
NONE |
|
16MB |
(2) 1M x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
NONE |
|
16MB |
(2) 2M x 36 |
NONE |
NONE |
|
18MB |
(2) 256K x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
18MB |
(2) 2M x 36 |
(2) 256K x 36 |
NONE |
|
18MB |
(2) 256K x 36 |
(2) 2M x 36 |
NONE |
|
20MB |
(2) 512K x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
20MB |
(2) 512K x 36 |
(2) 2M x 36 |
NONE |
|
20MB |
(2) 2M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
20MB |
(2) 2M x 36 |
(2) 512K x 36 |
NONE |
|
24MB |
(2) 2M x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
NONE |
|
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
NONE |
|
32MB |
(2) 2M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
NONE |
|
32MB |
(2) 4M x 36 |
NONE |
NONE |
|
34MB |
(2) 4M x 36 |
(2) 256K x 36 |
NONE |
|
34MB |
(2) 256K x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
34MB |
(2) 256K x 36 |
(2) 4M x 36 |
NONE |
|
36MB |
(2) 4M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
36MB |
(2) 4M x 36 |
(2) 512K x 36 |
NONE |
|
36MB |
(2) 512K x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
36MB |
(2) 512K x 36 |
(2) 4M x 36 |
NONE |
|
DRAM CONFIGURATION (CON’T) | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
40MB |
(2) 4M x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
NONE |
|
40MB |
(2) 1M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
NONE |
|
48MB |
(2) 4M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
NONE |
|
48MB |
(2) 2M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
NONE |
|
64MB |
(2) 4M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
NONE |
|
64MB |
(2) 8M x 36 |
NONE |
NONE |
|
66MB |
(2) 8M x 36 |
(2) 256K x 36 |
NONE |
|
66MB |
(2) 256K x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
66MB |
(2) 256K x 36 |
(2) 8M x 36 |
NONE |
|
68MB |
(2) 512K x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
68MB |
(2) 512K x 36 |
(2) 8M x 36 |
NONE |
|
68MB |
(2) 8M x 36 |
(2) 256K x 36 |
(2) 256K x 36 |
|
68MB |
(2) 8M x 36 |
(2) 512K x 36 |
NONE |
|
72MB |
(2) 8M x 36 |
(2) 512K x 36 |
(2) 512K x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
NONE |
|
72MB |
(2) 1M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
NONE |
|
80MB |
(2) 8M x 36 |
(2) 1M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
NONE |
|
80MB |
(2) 2M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
NONE |
|
96MB |
(2) 4M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
NONE |
|
96MB |
(2) 8M x 36 |
(2) 2M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
NONE |
|
128MB |
(2) 8M x 36 |
(2) 4M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
NONE |
|
130MB |
(2) 256K x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
132MB |
(2) 512K x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
136MB |
(2) 1M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
144MB |
(2) 2M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
160MB |
(2) 4M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
192MB |
(2) 8M x 36 |
(2) 8M x 36 |
(2) 8M x 36 |
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
256KB |
(8) 32K x 8 |
|
512KB |
(8) 64K x 8 |
|
CACHE JUMPER CONFIGURATION | ||
|
Size |
J4 |
J5 |
|
256KB |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
512KB |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
CPU SPEED CONFIGURATION | |||
|
Speed |
J6 |
J7 |
J8 |
|
90MHz |
Open |
pins 1 & 2 closed |
Open |
|
100MHz |
pins 1 & 2 closed |
pins 1 & 2 closed |
Open |
|
IRQ LEGACY CONNECTOR CONFIGURATION | |
|
Description |
J31 |
|
No connection |
pin 1 |
|
No connection |
pin 2 |
|
Interrupt 5 |
pin 3 |
|
Interrupt 14 |
pin 4 |
|
Interrupt 15 |
pin 5 |
|
Interrupt 6 |
pin 6 |
|
Interrupt 7 |
pin 7 |
|
No connection |
pin 8 |
|
Interrupt 9 |
pin 9 |
|
Interrupt 10 |
pin 10 |
|
Interrupt 11 |
pin 11 |
|
Interrupt 12 |
pin 12 |
|
Interrupt 3 |
pin 13 |
|
Interrupt 4 |
pin 14 |
