SOYO COMPUTER CO., LTD.
SY-020H
|
|
|
|
Processor |
80486SX/80487SX/80486DX |
|
Processor Speed |
16/20/25/33/40/50(internal)/50/66(internal)MHz |
|
Chip Set |
SIS |
|
Max. Onboard DRAM |
32MB |
|
Cache |
32/64/128/256KB |
|
BIOS |
AMI |
|
Dimensions |
245mm x 220mm |
|
I/O Options |
None |
|
NPU Options |
4167 |
|
|
|
|

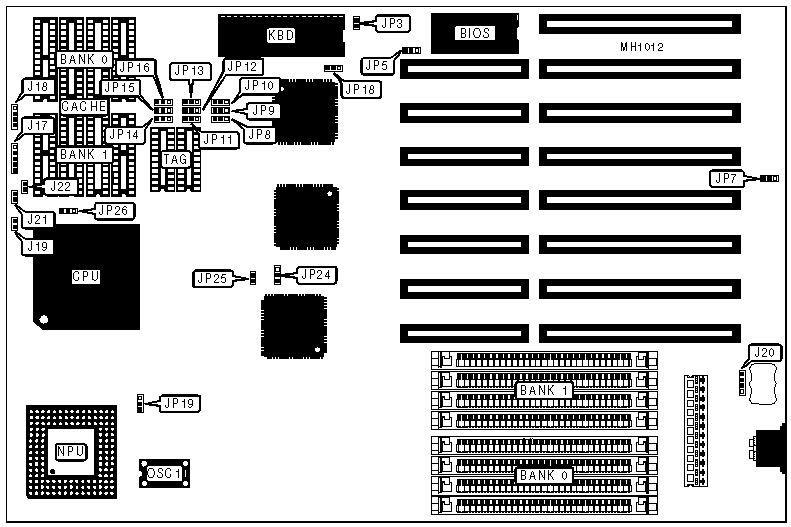

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
Power LED & keylock |
J17 |
External battery |
J20 |
|
Speaker |
J18 |
Turbo switch |
J21 |
|
Reset switch |
J19 |
Turbo LED |
J22 |
|
Note:The oscillator at OSC1 must match the external speed of the CPU installed. |
|||
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Jumper |
Position |
|
|
» |
Monitor type select monochrome |
JP3 |
Open |
|
|
Monitor type select color |
JP3 |
Closed |
|
» |
CMOS memory normal operation |
JP5 |
pins 1 & 2 closed |
|
|
CMOS memory clear |
JP5 |
pins 2 & 3 closed |
|
» |
Power good signal detect from board |
JP7 |
pins 1 & 2 closed |
|
|
Power good signal detect from power supply |
JP7 |
pins 2 & 3 closed |
|
» |
Keyboard BIOS clock source select programmable timer |
JP18 |
pins 1 & 2 closed |
|
|
Keyboard BIOS clock source select 7MHz |
JP18 |
pins 2 & 3 closed |
|
» |
CPU speed select ³ to 25MHz |
JP19 |
pins 1 & 2 closed |
|
|
CPU speed select < 25MHz |
JP19 |
pins 2 & 3 closed |
|
DRAM CONFIGURATION |
||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
20MB |
(4) 1M x 9 |
(4) 4M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
CACHE CONFIGURATION |
|||
|
Size |
Bank 0 |
Bank 1 |
TAG |
|
32KB |
(4) 8K x 8 |
NONE |
(2) 4K x 4 |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
(2) 4K x 4 |
|
128KB |
(4) 32K x 8 |
NONE |
(2) 16K x 4 |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(2) 16K x 4 |
|
CACHE JUMPER CONFIGURATION |
|||||||||
|
Size |
JP8 |
JP9 |
JP10 |
JP11 |
JP12 |
JP13 |
JP14 |
JP15 |
JP16 |
|
32KB |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
|
64KB |
2 & 3 |
1 & 2 |
1 & 2 |
2 & 3 |
1 & 2 |
1 & 2 |
2 & 3 |
2 & 3 |
1 & 2 |
|
128KB |
2 & 3 |
2 & 3 |
1 & 2 |
2 & 3 |
2 & 3 |
1 & 2 |
1 & 2 |
1 & 2 |
2 & 3 |
|
256KB |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
|
Note: Pins designated should be in the closed position. |
|||||||||
|
CPU CONFIGURATION |
|||
|
Type |
JP24 |
JP25 |
JP26 |
|
80486SX |
pins 2 & 3 closed |
Open |
Open |
|
80487SX |
pins 1 & 2 closed |
Closed |
pins 2 & 3 closed |
|
80486DX |
pins 1 & 2 closed |
Closed |
pins 1 & 2 closed |
