TMC RESEARCH CORPORATION
PAT48PX (LOCAL BUS)
|
Processor |
80486SX/80487SX/80486DX/ODP486SX/80486DX2 |
|
Processor Speed |
20/25/33/40(internal)/50/66(internal)MHz |
|
Chip Set |
OPTI |
|
Max. Onboard DRAM |
32MB |
|
Cache |
64/128/256KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit external memory card slot, 32-bit local bus card slots (2) |
|
NPU Options |
4167 |
|

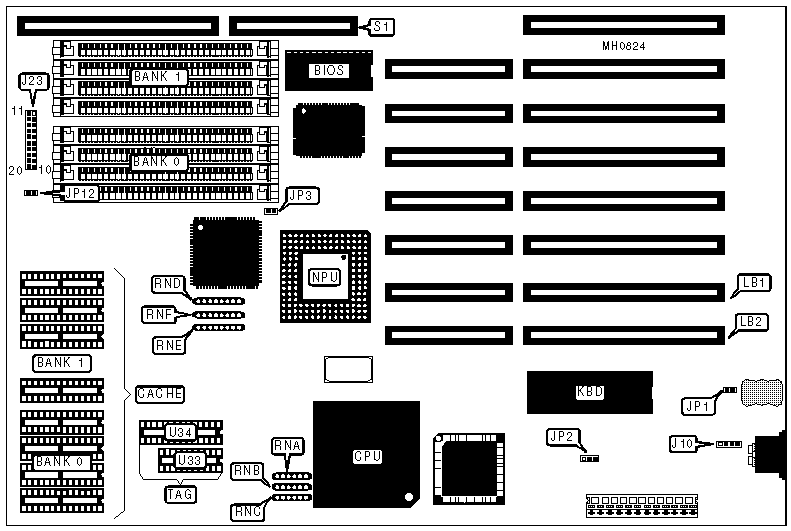

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
External battery |
J10 |
IDE LED in |
J23 pins 10 & 20 |
|
Speaker |
J23 pins 1 - 4 |
Power LED & keylock |
J23 pins 11 - 15 |
|
Turbo switch |
J23 pins 7 & 17 |
IDE LED out |
JP12 |
|
Turbo LED |
J23 pins 8 & 18 |
32-bit local bus card |
LB1 & LB2 |
|
Reset switch |
J23 pins 9 & 19 |
32-bit external memory card |
S1 |
|
Note:Local bus slots may also be used as normal ISA slots. |
|||
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Jumper |
Position |
|
|
» |
Monitor type select color |
JP1 |
Closed |
|
|
Monitor type select monochrome |
JP1 |
Open |
|
» |
CMOS memory normal operation (internal battery) |
JP2 |
pins 2 & 3 closed |
|
|
CMOS memory normal operation (external battery at J4) |
JP2 |
Open |
|
|
CMOS memory clear |
JP2 |
pins 1 & 2 closed |
|
» |
Bus speed select CLKIN/4 |
JP3 |
Open |
|
|
Bus speed select CLKIN/6 |
JP3 |
Closed |
|
DRAM CONFIGURATION |
||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(4) 256K x 9 |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
|
20MB |
(4) 4M x 9 |
(4) 1M x 9 |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
|
CACHE CONFIGURATION |
|||||
|
Size |
Bank 0 |
Bank 1 |
TAG (U33) |
TAG (U34) |
Resistor Installed |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
(1) 4K x 1 |
(1) 8K x 8 |
RND |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
(1) 16K x 1 |
(1) 8K x 8 |
RND |
|
64KB |
(4) 8K x 8 |
(4) 8K x 8 |
(1) 64K x 1 |
(1) 8K x 8 |
RND |
|
128KB |
(4) 32K x 8 |
NONE |
(1) 16K x 1 |
(1) 8K x 8 |
RNF |
|
128KB |
(4) 32K x 8 |
NONE |
(1) 64K x 1 |
(1) 8K x 8 |
RNF |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 16K x 1 |
(1) 32K x 8 |
RNE |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 64K x 1 |
(1) 32K x 8 |
RNE |
|
Notes: If DRAM is £ 16MB, all cache sizes may be installed, if DRAM is > 16MB and £ 32MB, 128 or 256KB cache must be installed, if DRAM > 32MB, 256KB cache must be installed. (Memory over 32MB would be installed on the proprietary external memory card.) |
|||||
|
CPU TYPE CONFIGURATION |
|||
|
Type |
RNA |
RNB |
RNC |
|
80486SX |
Not installed |
Not installed |
Installed |
|
80487SX |
Not installed |
Installed |
Not installed |
|
ODP486SX |
Not installed |
Installed |
Not installed |
|
80486DX |
Installed |
Not installed |
Not installed |
|
80486DX2 |
Installed |
Not installed |
Not installed |
