ABC COMPUTER COMPANY, LTD.

A4865

Processor

80486DX

Processor Speed

33MHz

Chip Set

OPTI

Max. Onboard DRAM

32MB

Cache

64/128/256/512KB

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

32-bit external memory card slot

NPU Options

4167

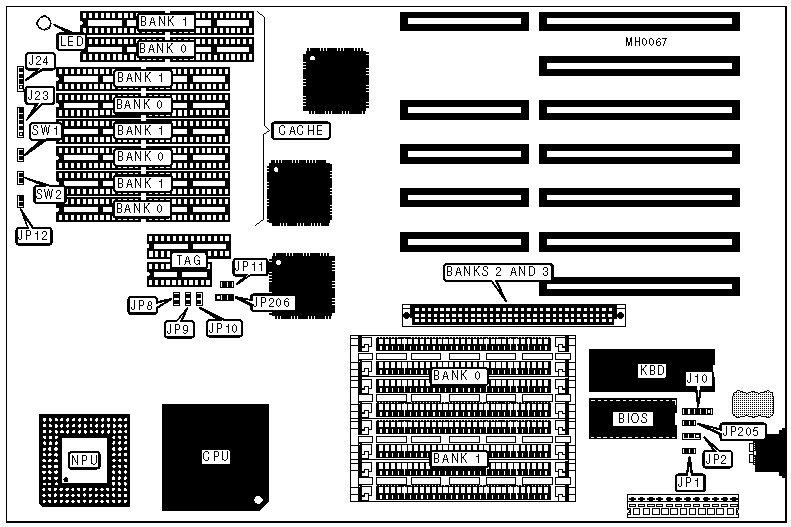

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

J10

Turbo LED

JP12

Power LED & Keylock

J23

Reset switch

SW1

Speaker

J24

Turbo switch

SW2

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Monitor type select color

JP1

Closed



Monitor type select monochrome

JP1

Open

»

CMOS memory normal operation

JP2

pins 2 & 3 closed



CMOS memory clear

JP2

pins 1 & 2 closed

»

Normal operation - do not alter

JP205

Open



Factory test (system burn in)

JP205

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

4MB

(4) 1M x 9

NONE

NONE

NONE

8MB

(4) 1M x 9

(4) 1M x 9

NONE

NONE

12MB

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

NONE

16MB

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

(4) 1MB x 9

16MB

(4) 4M x 9

NONE

NONE

NONE

20MB

(4) 1M x 9

(4) 4M x 9

NONE

NONE

24MB

(4) 1M x 9

(4) 1M x 9

(4) 4M x 9

NONE

28MB

(4) 1M x 9

(4) 1M x 9

(4) 4M x 9

(4) 1M x 9

32MB

(4) 4M x 9

(4) 4M x 9

NONE

NONE

36MB

(4) 1M x 9

(4) 4M x 9

(4) 4M x 9

NONE

40MB

(4) 1M x 9

(4) 1M x 9

(4) 4M x 9

(4) 4M x 9

48MB

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

NONE

52MB

(4) 1M x 9

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

64MB

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

Note:Banks 2 & 3 are utilized when a 32-bit external memory card is installed.

CACHE CONFIGURATION

Size

Bank 0

Bank 1

Tag

Dirty Bit

64KB

(8) 8K x 8

NONE

(1) 8K x 8

(1) 64K x 1

128KB

(8) 8K x 8

(8) 8K x 8

(1) 8K x 8

(1) 64K x 1

256KB

(8) 32K x 8

NONE

(1) 32K x 8

(1) 64K x 1

512KB

(8) 32K x 8

(8) 32K x 8

(1) 32K x 8

(1) 64K x 1

CACHE JUMPER CONFIGURATION

Size

JP8

JP9

JP10

JP11

JP206

64KB

open

open

open

open

pins 2 & 3 closed

128KB

closed

open

open

closed

pins 2 & 3 closed

256KB

closed

closed

open

closed

pins 2 & 3 closed

512KB

closed

closed

closed

closed

pins 1 & 2 closed
