Device Type	Mainboard
Processor	CX 6X86/CX 6X86L/CX 686MX/AM K5/AM K6/IDT C6/Pentium/ Pentium MMX
Processor Speed	75/90/100/120/133/150/166/180/200/233MHz
Chip Set	Unidentified
Maximum Onboard Memory	384MB (EDO & SDRAM supported)
Cache	512KB
BIOS	Award
Dimensions	254mm x 218mm
I/O Options	32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, audio in – CD-ROMs (2), ATX form card connector, digital audio in/out connector, sound/game connector

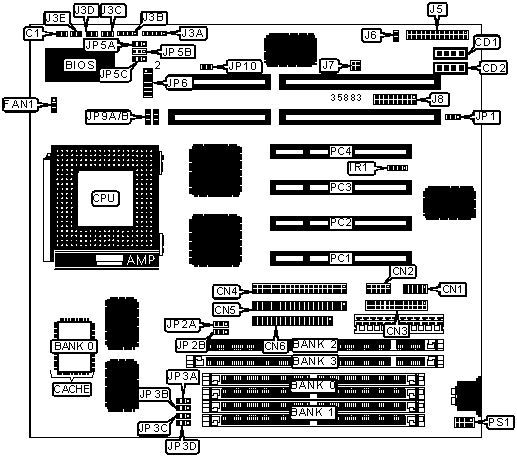

CONNECTIONS
Purpose	Location	Purpose	Location
Audio in – CD-ROM	CD1	Power LED & keylock	J3A
Audio in – CD-ROM	CD2	Speaker	J3B
Serial port 1	CN1	Reset switch	J3C
Serial port 2	CN2	IDE interface LED	J3D
Parallel port	CN3	Turbo LED	J3E
IDE interface 2	CN4	Sound/game connector	J5
IDE interface 1	CN5	Digital audio in/out connector	J7
Floppy drive interface	CN6	ATX form card connector	J8
CPU fan power	FAN1	32-bit PCI slots	PC1 – PC4
IR connector	IR1	PS/2 mouse interface	PS1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	C1	Unidentified
	Microphone type select normal	J6	Closed
	Microphone type select special	J6	Open
»	CMOS memory normal operation	JP1	Pins 1 & 2 closed
	CMOS memory clear	JP1	Pins 2 & 3 closed
	PCI CLK select CPU CLK/2	JP3D	Pins 1 & 2 closed
	PCI CLK select = 33MHz	JP3D	Pins 2 & 3 closed
	On board sound enabled	JP10	Open
	On board sound disabled	JP10	Closed

SIMM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	None
16MB	(2) 2M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
24MB	(2) 2M x 36	(2) 1M x 36
32MB	(2) 4M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36
40MB	(2) 4M x 36	(2) 1M x 36
48MB	(2) 4M x 36	(2) 2M x 36
64MB	(2) 8M x 36	None

SIMM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1
64MB	(2) 4M x 36	(2) 4M x 36
72MB	(2) 8M x 36	(2) 1M x 36
80MB	(2) 8M x 36	(2) 2M x 36
96MB	(2) 8M x 36	(2) 4M x 36
128MB	(2) 8M x 36	(2) 8M x 36
128MB	(2) 16M x 36	None
136MB	(2) 16M x 36	(2) 1M x 36
144MB	(2) 16M x 36	(2) 2M x 36
160MB	(2) 16M x 36	(2) 4M x 36
192MB	(2) 16M x 36	(2) 8M x 36
256MB	(2) 16M x 36	(2) 16M x 36
Note: Board accepts EDO memory.

DIMM CONFIGURATION
Size	Bank 2	Bank 3
8MB	(1) 1M x 64	None
16MB	(1) 2M x 64	None
16MB	(1) 1M x 64	(1) 1M x 64
24MB	(1) 2M x 64	(1) 1M x 64
32MB	(1) 4M x 64	None
32MB	(1) 2M x 64	(1) 2M x 64
40MB	(1) 4M x 64	(1) 1M x 64
48MB	(1) 4M x 64	(1) 2M x 64
64MB	(1) 8M x 64	None
64MB	(1) 4M x 64	(1) 4M x 64
72MB	(1) 8M x 64	(1) 1M x 64
80MB	(1) 8M x 64	(1) 2M x 64
96MB	(1) 8M x 64	(1) 4M x 64
128MB	(1) 16M x 64	None
128MB	(1) 8M x 64	(1) 8M x 64
136MB	(1) 16M x 64	(1) 1M x 64
144MB	(1) 16M x 64	(1) 2M x 64
160MB	(1) 16M x 64	(1) 4M x 64
192MB	(1) 16M x 64	(1) 8M x 64
256MB	(1) 16M x 64	(1) 16M x 64
Note: Board accepts SDRAM memory.

DIMM VOLTAGE CONFIGURATION
Voltage	JP2A	JP2B
3.3v	Pins 2 & 3 closed	Pins 2 & 3 closed
5v	Pins 1 & 2 closed	Pins 1 & 2 closed

CACHE CONFIGURATION
Size	Bank 0
512KB	(1) 64K x 64

CPU SPEED SELECTION (CX 6X86)
CPU speed	Clock speed	Multiplier	JP3A	JP3B	JP3C	JP5A	JP5B	JP5C
120MHz	50MHz	2x	2 & 3	2 & 3	2 & 3	2 & 3	1 & 2	1 & 2
133MHz	55MHz	2x	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2	1 & 2
150MHz	60MHz	2x	2 & 3	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2
166MHz	66MHz	2x	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2	1 & 2
200MHz	75MHz	2x	1 & 2	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86L)
CPU speed	Clock speed	Multiplier	JP3A	JP3B	JP3C	JP5A	JP5B	JP5C
120MHz	50MHz	2x	2 & 3	2 & 3	2 & 3	2 & 3	1 & 2	1 & 2
133MHz	55MHz	2x	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2	1 & 2
150MHz	60MHz	2x	2 & 3	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2
166MHz	66MHz	2x	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2	1 & 2
200MHz	75MHz	2x	1 & 2	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86MX)
CPU speed	Clock speed	Multiplier	JP3A	JP3B	JP3C	JP5A	JP5B	JP5C
166MHz	60MHz	2.5x	2 & 3	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2
200MHz	66MHz	2.5x	2 & 3	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2
233MHz	75MHz	2.5x	1 & 2	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (IDT C6)
CPU speed	Clock speed	Multiplier	JP3A	JP3B	JP3C	JP5A	JP5B	JP5C
150MHz	50MHz	3x	2 & 3	2 & 3	2 & 3	1 & 2	2 & 3	1 & 2
180MHz	60MHz	3x	2 & 3	2 & 3	1 & 2	1 & 2	2 & 3	1 & 2
200MHz	66MHz	3x	2 & 3	1 & 2	2 & 3	1 & 2	2 & 3	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K5)
CPU speed	Clock speed	Multiplier	JP3A	JP3B	JP3C	JP5A	JP5B	JP5C
75MHz	50MHz	1.5x	2 & 3	2 & 3	2 & 3	1 & 2	1 & 2	1 & 2
90MHz	60MHz	1.5x	2 & 3	2 & 3	1 & 2	1 & 2	1 & 2	1 & 2
100MHz	66MHz	1.5x	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2	1 & 2
150MHz	60MHz	2.5x	2 & 3	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2
166MHz	66MHz	2.5x	2 & 3	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6)
CPU speed	Clock speed	Multiplier	JP3A	JP3B	JP3C	JP5A	JP5B	JP5C
166MHz	66MHz	2.5x	2 & 3	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2
200MHz	66MHz	3x	2 & 3	1 & 2	2 & 3	1 & 2	2 & 3	1 & 2
233MHz	66MHz	3.5x	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	JP3A	JP3B	JP3C	JP5A	JP5B	JP5C
75MHz	50MHz	1.5x	2 & 3	2 & 3	2 & 3	1 & 2	1 & 2	1 & 2
90MHz	60MHz	1.5x	2 & 3	2 & 3	1 & 2	1 & 2	1 & 2	1 & 2
100MHz	66MHz	1.5x	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2	1 & 2
120MHz	60MHz	2x	2 & 3	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2
133MHz	66MHz	2x	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2	1 & 2
150MHz	60MHz	2.5x	2 & 3	2 & 3	1 & 2	2 & 3	2 & 3	1 & 2
166MHz	66MHz	2.5x	2 & 3	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2
200MHz	66MHz	3x	2 & 3	1 & 2	2 & 3	1 & 2	2 & 3	1 & 2
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX)
CPU speed	Clock speed	Multiplier	JP3A	JP3B	JP3C	JP5A	JP5B	JP5C
166MHz	66MHz	2.5x	2 & 3	1 & 2	2 & 3	2 & 3	2 & 3	1 & 2
200MHz	66MHz	3x	2 & 3	1 & 2	2 & 3	1 & 2	2 & 3	1 & 2
233MHz	66MHz	3.5x	2 & 3	1 & 2	2 & 3	1 & 2	1 & 2	1 & 2
Note: Pins designated should be in the closed position.

CPU TYPE SELECTION
Type	JP9A	JP9B
Single voltage	Pins 2 & 3 closed	Pins 2 & 3 closed
Dual voltage	Pins 1 & 2 closed	Pins 1 & 2 closed

CPU VOLTAGE SELECTION
Voltage	JP6
2.2v	Open
2.5v	Pins 11 & 12 closed
2.8v	Pins 9 & 10, 11 & 12 closed
2.9v	Pins 7 & 8, 11 & 12 closed
3.2v	Pins 5 & 6, 11 & 12 closed
3.3v	Pins 3 & 4, 11 & 12 closed
3.5v	Pins 1 & 2, 11 & 12 closed
