PHILIPS CONSUMER ELECTRONICS, CO.
E532-R2
|
Processor |
CX M1/AM K5/Pentium |
|
Processor Speed |
75/90/100/120/133/150/166/200MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
128MB (EDO supported) |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB |
|
BIOS |
Award |
|
Dimensions |
250mm x 220mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), cache slot, IR connector, USB connectors (2) |
|
NPU Options |
None |
|

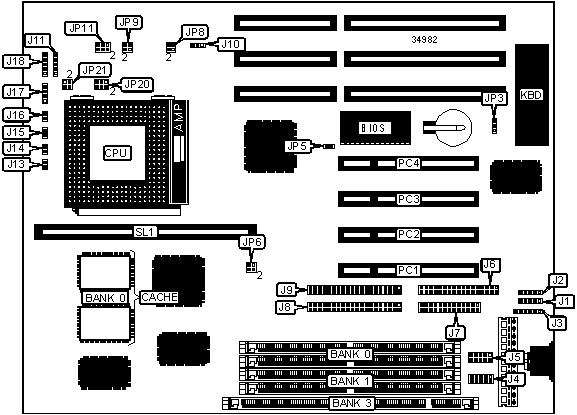

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
USB connector 1 |
J1 |
IR connector |
J11 |
|
USB connector 2 |
J2 |
IDE interface LED |
J13 |
|
PS/2 mouse interface |
J3 |
Green PC LED |
J14 |
|
Serial port 1 |
J4 |
Green PC connector |
J15 |
|
Serial port 2 |
J5 |
Reset switch |
J16 |
|
Floppy drive interface |
J6 |
Speaker |
J17 |
|
Parallel port |
J7 |
Power LED & keylock |
J18 |
|
IDE interface 1 |
J8 |
32-bit PCI slots |
PC1 – PC4 |
|
IDE interface 2 |
J9 |
Cache slot |
SL1 |
|
Chassis fan power |
J10 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Monitor type select color |
JP3 |
Pins 1 & 2 closed |
|
Monitor type select monochrome |
JP3 |
Pins 2 & 3 closed | |
|
» |
CMOS memory normal operation |
JP5 |
Open |
|
CMOS memory clear |
JP5 |
Closed | |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(2) 1M x 36 |
None |
|
16MB |
(2) 2M x 36 |
None |
|
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
|
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
|
32MB |
(2) 4M x 36 |
None |
|
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
|
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
|
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
|
64MB |
(2) 8M x 36 |
None |
|
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
|
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
|
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
|
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
|
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
|
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. Banks are interchangeable. | ||
|
DIMM CONFIGURATION | |
|
Size |
Bank 2 |
|
8MB |
(1) 1MB x 64 |
|
16MB |
(1) 2MB x 64 |
|
CACHE CONFIGURATION | ||
|
Size |
Bank 0 |
SL1 |
|
256KB |
(2) 32K x 32 |
Not installed |
|
512KB |
(2) 32K x 32 |
256KB module installed |
|
512KB |
(2) 64K x 32 |
Not installed |
|
CPU SPEED SELECTION (CYRIX) | ||||
|
CPU speed |
Clock speed |
Multiplier |
JP6 |
JP8 |
|
120MHz |
50MHz |
2x |
1 & 2, 3 & 4 |
1 & 2 |
|
133MHz |
55MHz |
2x |
Open |
1 & 2 |
|
150MHz |
60MHz |
2x |
1 & 2 |
1 & 2 |
|
166MHz |
66MHz |
2x |
3 & 4 |
1 & 2 |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU SPEED SELECTION (AMD) | ||||
|
CPU speed |
Clock speed |
Multiplier |
JP6 |
JP8 |
|
75MHz |
50MHz |
1.5x |
1 & 2, 3 & 4 |
Open |
|
90MHz |
60MHz |
1.5x |
1 & 2 |
Open |
|
100MHz |
66MHz |
1.5x |
3 & 4 |
Open |
|
120MHz |
60MHz |
1.5x |
1 & 2 |
Open |
|
133MHz |
66MHz |
1.5x |
3 & 4 |
Open |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU SPEED SELECTION (INTEL) | ||||
|
CPU speed |
Clock speed |
Multiplier |
JP6 |
JP8 |
|
75MHz |
50MHz |
1.5x |
1 & 2, 3 & 4 |
Open |
|
90MHz |
60MHz |
1.5x |
1 & 2 |
Open |
|
100MHz |
66MHz |
1.5x |
3 & 4 |
Open |
|
120MHz |
60MHz |
2x |
1 & 2 |
1 & 2 |
|
133MHz |
66MHz |
2x |
3 & 4 |
1 & 2 |
|
150MHz |
60MHz |
2.5x |
1 & 2 |
1 & 2, 3 & 4 |
|
166MHz |
66MHz |
2.5x |
3 & 4 |
1 & 2, 3 & 4 |
|
200MHz |
66MHz |
3x |
3 & 4 |
3 & 4 |
|
Note: Pins designated should be in the closed position. | ||||
|
CPU VOLTAGE SELECTION | |||||
|
Voltage |
JP9 |
JP11 |
JP20 |
JP21 | |
|
2.5v |
1 & 2 |
1 & 3, 2 & 4 |
5 & 6 |
Open | |
|
2.8v |
1 & 2 |
1 & 3, 2 & 4 |
3 & 4 |
Open | |
|
2.9v |
1 & 2 |
1 & 3, 2 & 4 |
1 & 2 |
Open | |
| » |
3.3v |
1 & 2 |
3 & 5, 4 & 6 |
3 & 4 |
1 & 2, 3 & 4 |
|
3.5v |
3 & 4 |
3 & 5, 4 & 6 |
3 & 4 |
1 & 2, 3 & 4 | |
|
Note: Pins designated should be in the closed position. | |||||
