PHILIPS CONSUMER ELECTRONICS, CO.

P3348SX

Processor

80386SX

Processor Speed

20MHz

Chip Set

Unidentified

Video Chip Set

Cirrus Logic

Maximum Onboard Memory

8MB

Maximum Video Memory

Unidentified

Cache

None

BIOS

Unidentified

Dimensions

242mm x 240mm

I/O Options

Floppy drive interface, IDE interface, parallel port, serial ports (2), VGA port, riser slot

NPU Options

80387SX

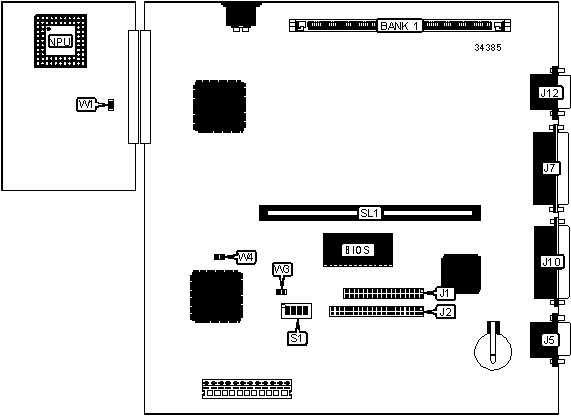

CONNECTIONS

Purpose

Location

Purpose

Location

Floppy drive interface

J1

Parallel port

J10

IDE interface

J2

VGA port

J12

Serial port 1

J5

Riser slot

SL1

Serial port 2

J7

Keylock

W4

USER CONFIGURABLE SETTINGS

Function

Label

Position



Floppy drive interface enabled

S1/2

Off



Floppy drive interface disabled

S1/2

On



On board video disabled

S1/3

On



On board video enabled

S1/3

Off



Password enabled

S1/4

On



Password disabled

S1/4

Off



NPU not installed

W1

Open



NPU installed

W1

Closed



Monitor type select color

W3

Closed



Monitor type select monochrome

W3

Open

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

1MB

None

2MB

1MB

(1) 256K x 36

5MB

1MB

(1) 1M x 36

8MB

1MB

(1) 2M x 36

Note: Bank 0 is factory installed and is not configurable. The location is unidentified.

DRAM SWITCH CONFIGURATION

Size

S1/1

1MB

On

2MB

On

5MB

On

8MB

Off
