ROBOTECH, INC.

PENTIUM 60MHZ

Processor

Pentium

Processor Speed

60/66MHz

Chip Set

ALI

Max. Onboard DRAM

192MB

Cache

256/512/1024KB

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

32-bit PCI slots (4), green PC connectors (2)

NPU Options

None

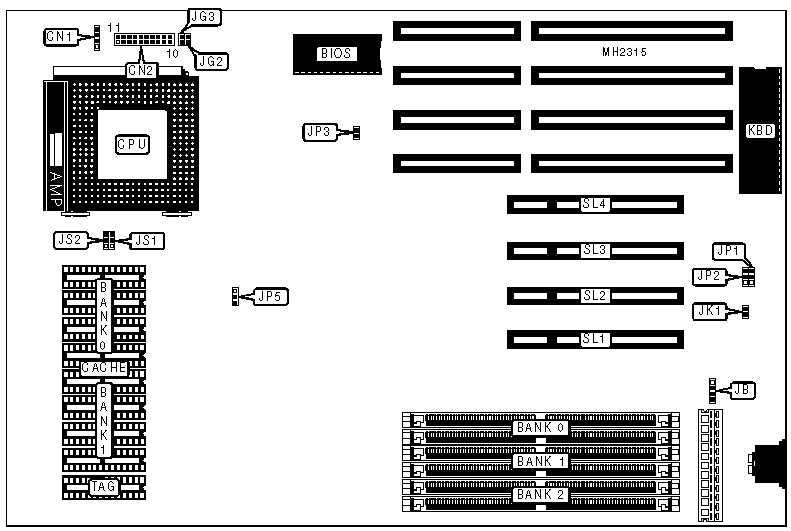

CONNECTIONS

Purpose

Location

Purpose

Location

Chassis fan power

CN1

Reset switch

CN2 (pins 19 - 20)

Power LED & keylock

CN2 (pins 1 - 5)

External battery

JB

Speaker

CN2 (pins 6 - 10)

Green PC connector

JG2

Turbo LED

CN2 (pins 12 - 13)

Green PC connector

JG3

Turbo switch

CN2 (pins 15 - 17)

32-bit PCI slots

SL1 - SL4

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

CMOS memory normal operation

JB

pins 2 & 3 closed



CMOS memory clear

JB

pins 3 & 4 closed

»

Power good signal detect from board

JP1

pins 2 & 3 closed



Power good signal detect from power supply

JP1

pins 1 & 2 closed

»

Flash BIOS voltage select 5v

JP2

pins 2 & 3 closed



Flash BIOS voltage select 12v

JP2

pins 1 & 2 closed

»

Factory configured - do not alter

JP3

Open

»

ADS signal select no delay

JP5

pins 1 & 2 closed



ADS signal select delay

JP5

pins 2 & 3 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

4MB

(2) 512K x 36

NONE

NONE

8MB

(2) 512K x 36

(2) 512K x 36

NONE

8MB

(2) 1M x 36

NONE

NONE

12MB

(2) 512K x 36

(2) 512K x 36

(2) 512K x 36

12MB

(2) 512K x 36

(2) 1M x 36

NONE

12MB

(2) 1M x 36

(2) 512K x 36

NONE

16MB

(2) 1M x 36

(2) 512K x 36

(2) 512K x 36

16MB

(2) 1M x 36

(2) 1M x 36

NONE

16MB

(2) 2M x 36

NONE

NONE

20MB

(2) 512K x 36

(2) 1M x 36

(2) 1M x 36

20MB

(2) 512K x 36

(2) 2M x 36

NONE

20MB

(2) 2M x 36

(2) 512K x 36

NONE

24MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

24MB

(2) 1M x 36

(2) 2M x 36

NONE

24MB

(2) 2M x 36

(2) 512K x 36

(2) 512K x 36

24MB

(2) 2M x 36

(2) 1M x 36

NONE

32MB

(2) 2M x 36

(2) 1M x 36

(2) 1M x 36

32MB

(2) 2M x 36

(2) 2M x 36

NONE

32MB

(2) 4M x 36

NONE

NONE

36MB

(2) 512K x 36

(2) 2M x 36

(2) 2M x 36

36MB

(2) 512K x 36

(2) 4M x 36

NONE

36MB

(2) 4M x 36

(2) 512K x 36

NONE

40MB

(2) 1M x 36

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

NONE

40MB

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

48MB

(2) 2M x 36

(2) 4M x 36

NONE

48MB

(2) 4M x 36

(2) 512K x 36

(2) 512K x 36

48MB

(2) 2M x 36

(2) 2M x 36

(2) 2M x 36

48MB

(2) 4M x 36

(2) 2M x 36

NONE

64MB

(2) 4M x 36

(2) 2M x 36

(2) 2M x 36

64MB

(2) 4M x 36

(2) 4M x 36

NONE

64MB

(2) 8M x 36

NONE

NONE

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

68MB

(2) 512K x 36

(2) 4M x 36

(2) 4M x 36

68MB

(2) 512K x 36

(2) 8M x 36

NONE

68MB

(2) 8M x 36

(2) 512K x 36

NONE

72MB

(2) 1M x 36

(2) 4M x 36

(2) 4M x 36

72MB

(2) 1M x 36

(2) 8M x 36

NONE

72MB

(2) 8M x 36

(2) 512K x 36

(2) 512K x 36

72MB

(2) 8M x 36

(2) 1M x 36

NONE

80MB

(2) 8M x 36

(2) 2M x 36

NONE

80MB

(2) 2M x 36

(2) 4M x 36

(2) 4M x 36

80MB

(2) 2M x 36

(2) 8M x 36

NONE

80MB

(2) 8M x 36

(2) 1M x 36

(2) 1M x 36

96MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

96MB

(2) 4M x 36

(2) 8M x 36

NONE

96MB

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

NONE

128MB

(2) 8M x 36

(2) 4M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

NONE

132MB

(2) 512K x 36

(2) 8M x 36

(2) 8M x 36

132MB

(2) 1M x 36

(2) 8M x 36

(2) 8M x 36

144MB

(2) 2M x 36

(2) 8M x 36

(2) 8M x 36

160MB

(2) 4M x 36

(2) 8M x 36

(2) 8M x 36

192MB

(2) 8M x 36

(2) 8M x 36

(2) 8M x 36

Note: Depending on board version, maximum DRAM may be 160MB.

CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG

256KB

(4) 32K x 8

(4) 32K x 8

(1) 32K x 8

512KB

(4) 64K x 8

(4) 64K x 8

(1) 32K x 8

1MB

(4) 128K x 8

(4) 128K x 8

(1) 32K x 8

CACHE JUMPER CONFIGURATION

Size

JS1

JS2

256KB

pins 1 & 2 closed

pins 1 & 2 closed

512KB

pins 2 & 3 closed

pins 1 & 2 closed

1MB

pins 2 & 3 closed

pins 2 & 3 closed

CPU SPEED CONFIGURATION

Speed

JK1

60MHz

Open

66MHz

Closed
