Processor	80486SX/80487SX/80486DX/80486DX2
Processor Speed	25/33/50(internal)/66(internal)MHz
Chip Set	UMC
Max. Onboard DRAM	32MB
Cache	64/128/256KB
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	None
NPU Options	None

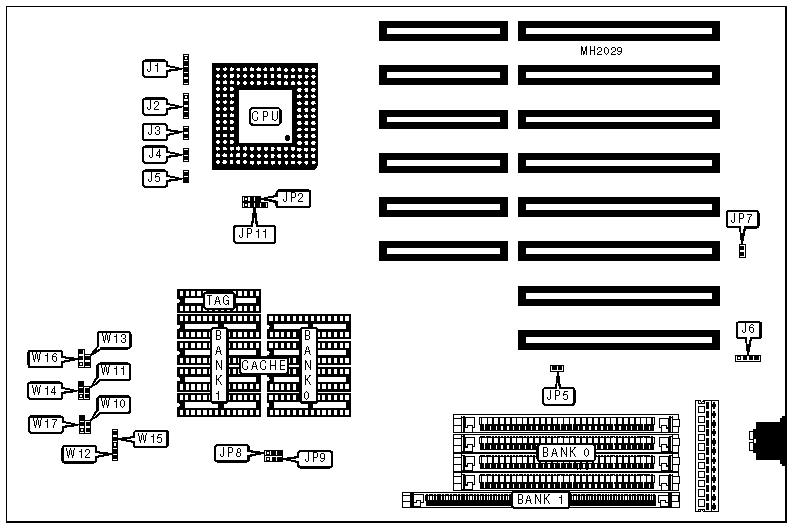

CONNECTIONS
Purpose	Location	Purpose	Location
Power LED & keylock	J1	Turbo switch	J4
Speaker	J2	Reset switch	J5
Turbo LED	J3	External battery	J6

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Monitor type select CGA	JP5	Closed
	Monitor type select monochrome EGA/VGA	JP5	Open
»	Battery type select internal	JP7	Closed
	Battery type select external	JP7	Open
»	Factory configured - do not alter	JP8	Open
»	Factory configured - do not alter	JP9	pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(1) 256K x 36
4MB	(4) 1M x 9	NONE
5MB	(4) 256K x 9	(1) 1M x 36
8MB	(4) 1M x 9	(1) 1M x 36
16MB	(4) 4M x 9	NONE
20MB	(4) 1M x 9	(1) 4M x 36
32MB	(4) 4M x 9	(1) 4M x 36

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG
64KB	(4) 8K x 8	(4) 8K x 8	(2) 16K x 4
128KB	(4) 32K x 8	NONE	(2) 16K x 4
256KB	(4) 32K x 8	(4) 32K x 8	(2) 16K x 4

CACHE JUMPER CONFIGURATION
Size	W10	W11	W12	W13	W14	W15	W16	W17
64KB	Open	Open	Open	Open	1 & 2	1 & 2	1 & 2	Open
128KB	Closed	Open	Closed	Open	1 & 2	1 & 2	2 & 3	1 & 2
256KB	Closed	Closed	Closed	Closed	2 & 3	2 & 3	1 & 2	2 & 3
Note: Pins designated should be in the closed position.

CPU TYPE CONFIGURATION
Type	JP2	JP11
80486SX	Open	pins 2 & 3 closed
80487SX	pins 1 & 2 closed	pins 1 & 2, 3 & 4 closed
80486DX/DX2	pins 2 & 3 closed	pins 1 & 2, 3 & 4 closed
