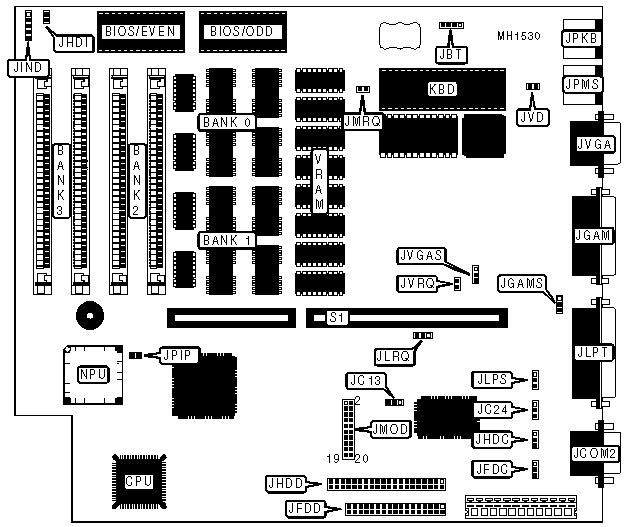

PACKARD BELL

PB300/PB320 (REV. A)

Processor

80386SX

Processor Speed

25MHz

Chip Set

ACC

Max. onboard DRAM

5MB

Cache

None

BIOS

Phoenix

Dimensions

230mm x 220mm

I/O Options

Fax/modem daughterboard, floppy drive interface, game port, IDE interface, parallel port, PS/2 keyboard port, PS/2 mouse port, serial port, VGA port

NPU Options

80387SX

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

JBT

Parallel port

JLPT

Serial port

JCOM2

Proprietary modem daughterboard

JMOD

Floppy drive interface

JFDD

PS/2 keyboard

JPKB

Game port

JGAM

PS/2 mouse

JPMS

IDE interface

JHDD

VGA port

JVGA

IDE interface LED

JHDI

Riser card

S1

Front panel connector

JIND





USER CONFIGURABLE SETTINGS

Function

Jumper/Switch

Position

»

Onboard floppy drive interface enabled

JFDC

pins 1 & 2 closed



Onboard floppy drive interface disabled

JFDC

pins 2 & 3 closed

»

Onboard Game port disabled

JGAMS

pins 1 & 2 closed



Onboard Game port enabled

JGAMS

pins 2 & 3 closed

»

Onboard IDE interface enabled

JHDC

pins 1 & 2 closed



Onboard IDE interface disabled

JHDC

pins 2 & 3 closed

»

PS/2 mouse port enabled (IRQ12)

JMRQ

Closed



PS/2 mouse port disabled

JMRQ

Open

»

Pipeline mode disabled

JPIP

Open



Pipeline mode enabled

JPIP

Closed

»

Monitor type select color

JVD

pins 2 & 3 closed



Monitor type select monochrome

JVD

pins 1 & 2 closed

ONBOARD VIDEO CONFIGURATION

Onboard Video

IRQ

JVGAS

JVRQ

»

Enabled

IRQ9

pins 1 & 2 closed

Closed



Enabled

None

pins 1 & 2 closed

Open



Disabled

N/A

pins 2 & 3 closed

N/A

SERIAL PORT CONFIGURATION

Modem (JMOD)

Port B (JCOM2)

ISA Modem

JC13

JC24

JMOD

Disabled

COM2

None

N/A

pins 1 & 2

Closed

Disabled

COM2

COM1

pins 2 & 3

pins 1 & 2

Closed

Disabled

COM2

COM3

pins 1 & 2

pins 1 & 2

Closed

COM1

COM2

None

pins 1 & 2

pins 1 & 2

Daughterboard

COM3

COM2

None

pins 2 & 3

pins 1 & 2

Daughterboard

Disabled

COM4

None

N/A

pins 2 & 3

Closed

Disabled

COM4

COM1

pins 2 & 3

pins 2 & 3

Closed

Disabled

COM4

COM3

pins 1 & 2

pins 2 & 3

Closed

COM1

COM4

None

pins 1 & 2

pins 2 & 3

Daughterboard

COM3

COM4

None

pins 2 & 3

pins 2 & 3

Daughterboard

Note: JMOD is closed using a special jumper, JMODJ, which connects pins 10 and 11. Permanent damage to the board will occur if the JMODJ jumper is installed improperly.

Pins designated should be in the closed position.

PARALLEL PORT CONFIGURATION

LPT

IRQ

JLPS

JLRQ

»

LPT1

IRQ7

pins 1 & 2 closed

pins 2 & 3 closed



LPT1

IRQ5

pins 1 & 2 closed

pins 1 & 2 closed



LPT2

IRQ7

pins 2 & 3 closed

pins 2 & 3 closed



LPT2

IRQ5

pins 2 & 3 closed

pins 1 & 2 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

1MB

(4) 44256

(4) 44256

NONE

NONE

3MB

(4) 44256

(4) 44256

(2) 1M x 9

NONE

5MB

(4) 44256

(4) 44256

(2) 1M x 9

(2) 1M x 9

Note: Banks 0 & 1 are soldered to the board.
